Asynchronous Payment Flow

Piano has developed a new way of handling payment options to allow for an external invoice flow (a.k.a. invoice payment method), check/cash payment flows or other asynchronous payment flows. With these options all of Subscription Management + Billing features continue to be available (terms, promotions, trials, etc.) as well as subscription data and billing is managed within Piano too, while payment gateway actions are handled externally using your own process and interface.

Supported Features and Functionality

Please click on the "Fullscreen" option below to enlarge the table to show all available payment method features.

*In case of free period purchases (trials, promos) the payment will be in a verified status and the subscription will automatically renew at the end of the trial period. Depending on your strategy, you may allow the user to proceed to the free period without verifying the method (tokenization) or after this conversion, you may want the user to store their payment method on file to ensure you can then run a renewal transaction once the free period is over. Upon renewal, you will receive the access_modified webhook.

Template Changes

To ensure the latest code is loaded in your Checkout (Payment Components) and MyAccount (My Account Wallet Components) with Invoice options, system template changes are required. There are a few ways to update your templates;

• The easiest is to reset to default if you haven’t stylized the templates.

• If you did, then you can use the Compare code feature and compare the code between the default version and your current version, and carry over any new code line by line.

• Alternatively, you can follow the below scripts and carry over the latest code line by line to your system templates

System Templates

Add the following markup into the Payment Components template:

<script type="text/ng-template" id="/frontend/providers/components/inbaf/checkout/component.shtml">
  <div class="inbaf-wrapper new-card-form">
    <div class="row">
      <div class="cc_stored_cards" ng-show="data.stored.length > 0">
        <table class="payment-method-card">
          <tr class="payment-method-card-row" ng-repeat="method in data.stored"
              ng-class="{'selected' : $parent.data.selectedUpiId == method.id}">
            <td class="inbaf-table-cell">
              <label class="inbaf-table-cell-label">
                <t context="checkout.platform">{{method.description}}</t>
              </label>
            </td>
            <td class="inbaf-table-cell inbaf-text-right">
              <div class="payment-method-card-default-payment"
                   ng-show="method.id === data.defaultPaymentMethodId">
                <t>Default</t>
              </div>
              <button ng-hide="method.id === data.defaultPaymentMethodId"
                      ng-click="setAsDefault(method)"
                      type="button"
                      class="set-as-default-button">
                <t>Set as default</t>
              </button>
            </td>
          </tr>
        </table>
      </div>
      <div class="cc_new_card" ng-show="data.stored.length <= 0">
        <div class="row inbaf-invoice-for">
          <div class="inbaf-warning-icon">
          </div>
          <div class="inbaf-invoice-for-text">
            <t context="checkout.platform">Your Invoice will be sent to your account email after <b>Complete purchase</b>.</t>
          </div>
        </div>
        <div class="payment-system-condition">
          <span ng-if="!isSubscription()">
            <div class="custom-checkbox">
              <input type="checkbox" name="store_in_vault" ng-model="data.store_in_vault" id="remember-my-email-inbaf"/>
              <label for="remember-my-email-inbaf">
                  <t>Remember my email for future invoices</t>
              </label>
            </div>
          </span>
          <span ng-if="isSubscription()">
            <input type="hidden" name="store_in_vault" ng-model="data.store_in_vault"/>
          </span>
          <div class="custom-checkbox" ng-if="data.store_in_vault">
            <input type="checkbox" name="defaultPaymentMethodId" ng-model="data.defaultPaymentMethodId" id="default-payment-method-inbaf"/>
            <label for="default-payment-method-inbaf">
              <t>Apply this payment method to all active subscriptions</t>
            </label>
          </div>
        </div>
      </div>
      <div consents-list></div>
      <div class="footer-modal">
        <div ng-show="isConfirmStepEnabled()" class="complete-purchase-button" goto-confirmation-button
             title="{{'Complete Purchase' | t}}"></div>
        <div ng-show="!isConfirmStepEnabled()" class="complete-purchase-button" complete-purchase-button
             title="{{'Complete Purchase' | t}}"></div>
      </div>
    </div>
  </div>
</script>



<script type="text/ng-template" id="/frontend/providers/components/inbas/checkout/component.shtml">
  <div class="inbas-wrapper new-card-form">
    <div class="row">
      <div class="cc_stored_cards" ng-show="data.stored.length > 0">
        <table class="payment-method-card">
          <tr class="payment-method-card-row" ng-repeat="method in data.stored"
              ng-class="{'selected' : $parent.data.selectedUpiId == method.id}">
            <td class="inbas-table-cell">
              <label class="inbas-table-cell-label">
                <t context="checkout.platform">{{method.description}}</t>
              </label>
            </td>
            <td class="inbas-table-cell inbas-text-right">
              <div class="payment-method-card-default-payment"
                   ng-show="method.id === data.defaultPaymentMethodId">
                <t>Default</t>
              </div>
              <button ng-hide="method.id === data.defaultPaymentMethodId"
                      ng-click="setAsDefault(method)"
                      type="button"
                      class="set-as-default-button">
                <t>Set as default</t>
              </button>
            </td>
          </tr>
        </table>
      </div>
      <div class="cc_new_card" ng-show="data.stored.length <= 0">
        <div class="row inbas-invoice-for">
          <div class="inbas-warning-icon">
          </div>
          <div class="inbas-invoice-for-text">
            <t context="checkout.platform">Your Invoice will be sent to your account email after <b>Complete purchase</b>.</t>
          </div>
        </div>
        <div class="payment-system-condition">
          <span ng-if="!isSubscription()">
            <div class="custom-checkbox">
              <input type="checkbox" name="store_in_vault" ng-model="data.store_in_vault" id="remember-my-email-inbas"/>
              <label for="remember-my-email-inbas">
                  <t>Remember my email for future invoices</t>
              </label>
            </div>
          </span>
          <span ng-if="isSubscription()">
            <input type="hidden" name="store_in_vault" ng-model="data.store_in_vault"/>
          </span>
          <div class="custom-checkbox" ng-if="data.store_in_vault">
            <input type="checkbox" name="defaultPaymentMethodId" ng-model="data.defaultPaymentMethodId" id="default-payment-method-inbas"/>
            <label for="default-payment-method-inbas">
              <t>Apply this payment method to all active subscriptions</t>
            </label>
          </div>
        </div>
      </div>
      <div consents-list></div>
      <div class="footer-modal">
        <div ng-show="isConfirmStepEnabled()" class="complete-purchase-button" goto-confirmation-button
             title="{{'Complete Purchase' | t}}"></div>
        <div ng-show="!isConfirmStepEnabled()" class="complete-purchase-button" complete-purchase-button
             title="{{'Complete Purchase' | t}}"></div>
      </div>
    </div>
  </div>
</script>

Add the following markup into the My Account Wallet Components template:

<script type="text/ng-template" id="/frontend/providers/components/inbaf/my_account/component.shtml">
  <div>
    <my-account-billing-country></my-account-billing-country>
    <div class="form">
      <div class="email-container">
        {{ invoiceForEmail }}
      </div>
     <div error-section
           errors="formErrors"
           heading="{{'Couldn\'t submit issue' | t}}"></div>
    </div>
  </div>
</script>


<script type="text/ng-template" id="/frontend/providers/components/inbas/my_account/component.shtml">
  <div>
    <my-account-billing-country></my-account-billing-country>
    <div class="form">
      <div class="email-container">
        {{ invoiceForEmail }}
      </div>
      <div error-section
           errors="formErrors"
           heading="{{'Couldn\'t submit issue' | t}}"></div>
    </div>
  </div>
</script>

Additional Receipt Handling

To allow for complete control in the checkout, there are two new receipt components (allowing you to customize a "Thank you" page) available in the Checkout Components template:

1. inbaf - INvoice BAsed First

2. inbas - INvoice BAsed Second

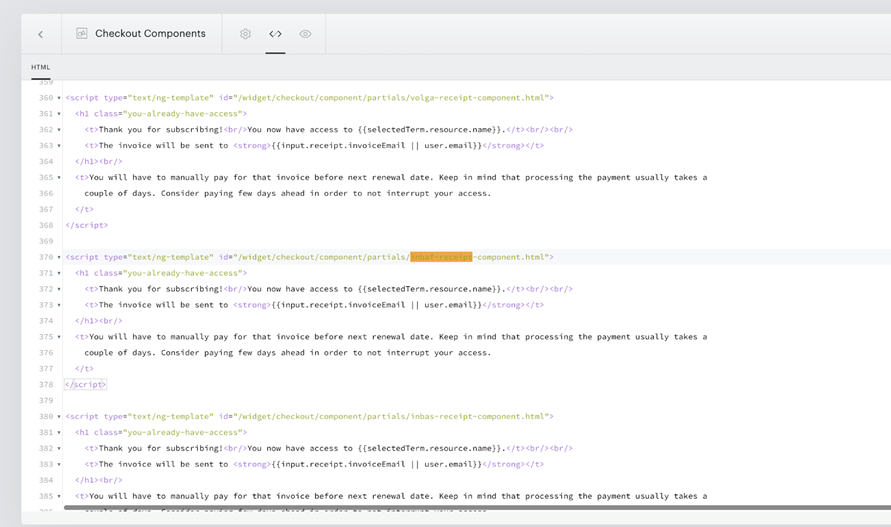

In your Checkout Components template search for /inbaf-receipt-component and/or /inbas-receipt-component to ensure you’re using the latest template (if you can’t find these, reset the template to its default version), then you can make further changes or implement a redirect to 3rd party payment page accordingly for each Invoice option.

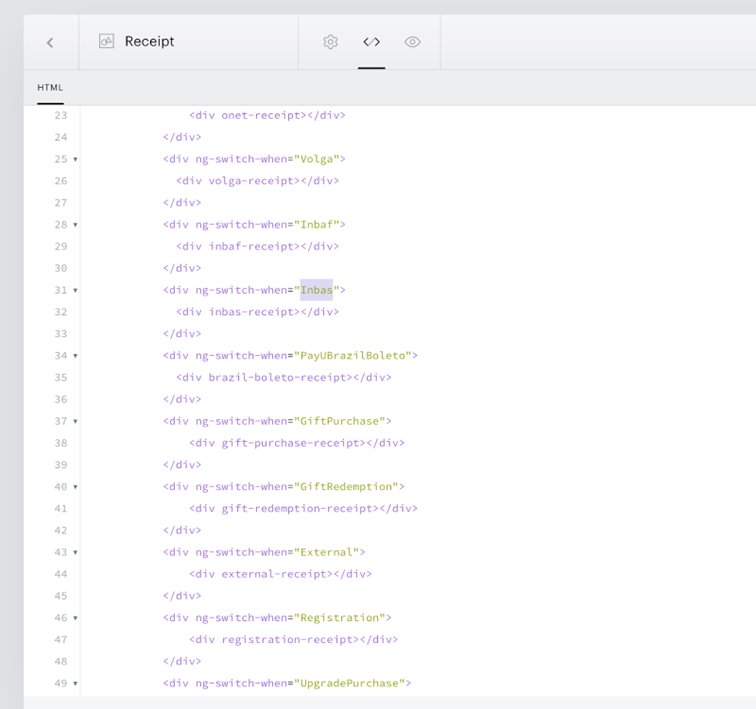

Please also make sure that your Receipt template loads the latest code, specific sections should appear in your Receipt template as per the below screenshot:

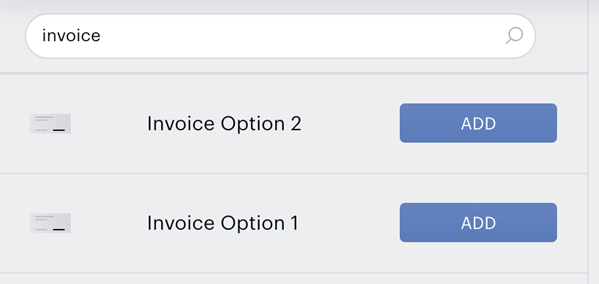

Payment Options

Support for two invoice payment options to enable the asynchronous integration flow has been added to the checkout and the Piano publisher dashboard. These two options have a configurable name for user presentation. There are two types:

• Invoice Option 1

• Invoice Option 2

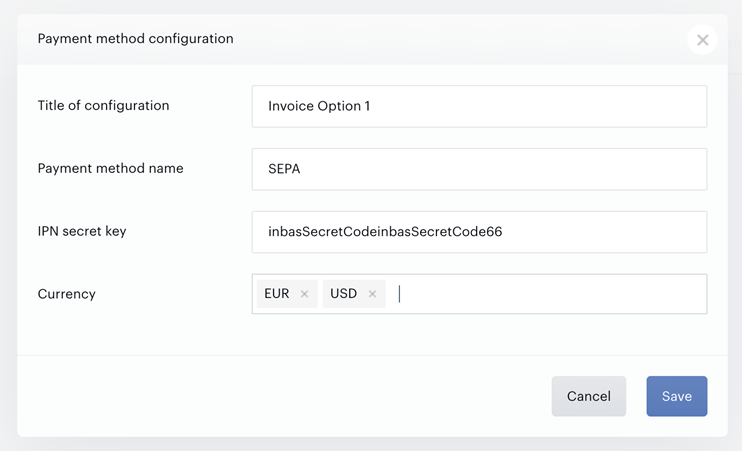

You can input further information into the Piano dashboard by clicking Edit Business→Payment Provider→Invoice Option 1 or Invoice Option 2 (Add New).

• Title of Configuration - is the name for the method to be used within the platform

• Payment method name - is the name which will be displayed on the frontend (e.g. in the Checkout, My Account, etc.)

• IPN Secret key - a set of numbers, lowercase/uppercase letters, special characters etc. with a minimal length of 32 (256bit)

• Currency - select the desired currency

Checkout Flow

New Purchases

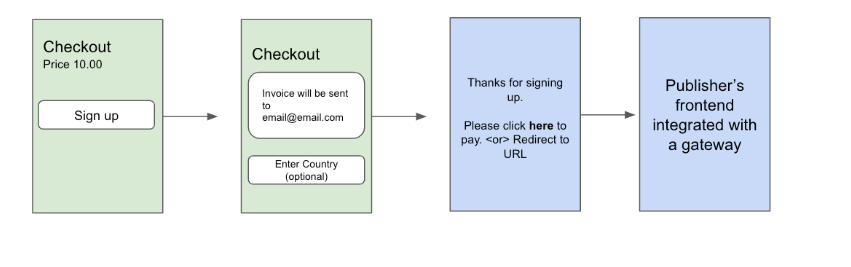

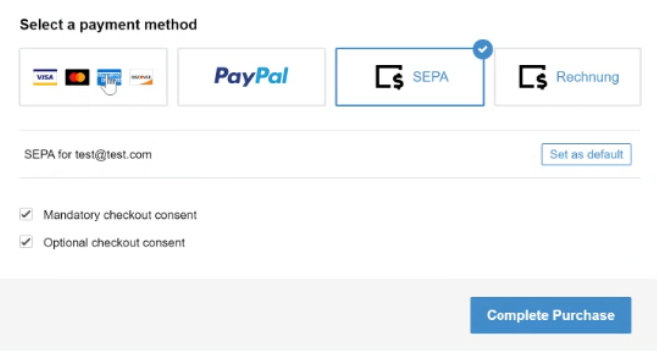

Below is a diagram of how a basic checkout flow would look on the frontend:

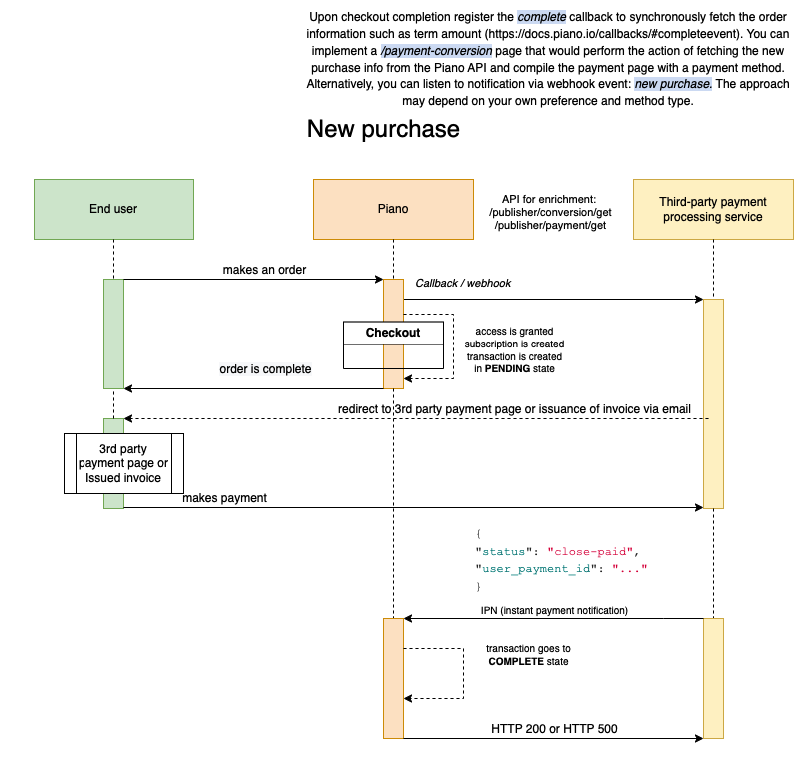

And here is a diagram of how the asynchronous integration works on the backend:

[image-zoomable] [/image-zoomable]

When checking out with the Invoice option, the default account email address is used. The invoice method is stored for future purchases, as the default method.

After checkout with any of the invoice options, the transaction has a PENDING state.

For the final completion of the purchase, our system waits for the IPN (instant payment notification). Every payment provider has its own address:

• Invoice Option 1 waits for the IPN on the PianoURL ending /ipn/inbaf?aid=***

• Invoice Option 2 waits for the IPN on the PianoURL ending /ipn/inbas?aid=***

Note: Your Piano base URL depends on the environment where your application is located on:

• https://buy.piano.io

• https://buy-eu.piano.io (Europe)

URL has aid as a required parameter.

So a full example URL address would look like this: https://buy-eu.piano.io/ipn/inbaf?aid=ABC123

The body should contain:

{"token":"eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdGF0dXMiOiJjbG9zZS1wYWlkIiwidXNlcl9wYXltZW50X2lkIjoiVVA2QkFVUks3RDNXIn0.QrEe5hgRmekpwARx6UCVTqJCQNLoGn-TLDIiyK5Wec8"}

The token is a simple JWT with payload:

{
    "status": "close-paid",
    "user_payment_id": "UP6BAURK7D3W"
}

Where status can be "close-paid" or "close-unpaid", and the user_payment_id is a transaction ID inside the Piano platform (for example UPE9BS501SYE).

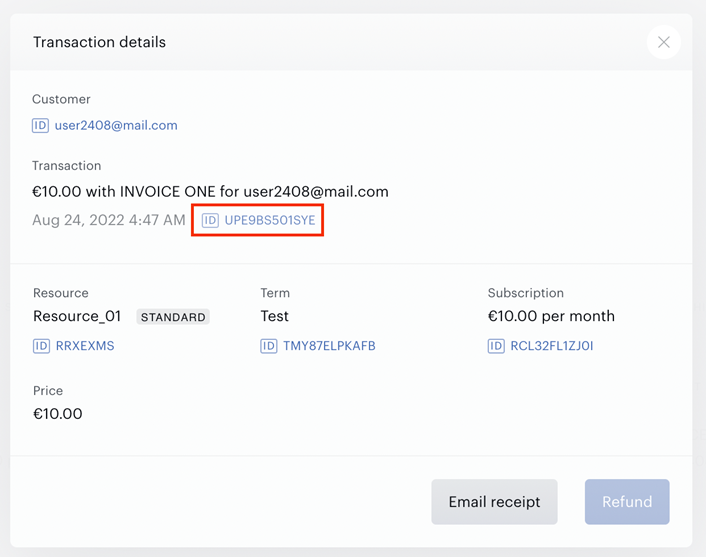

user_payment_id (string): The user payment ID can be also received via APIs:

/publisher/payment/get

/publisher/conversion/get

IPN Notifications

Piano handles the Webhook sending and receiving of IPN messages, while the publisher needs to configure their system to receive (and decrypt) webhooks from Piano and send IPN messages back to Piano.

Piano expects 2 possible IPNs:

1. invoice is paid (positive):

{
"status": "close-paid",
"user_payment_id": "..."
}

Upon receipt of this notification, Piano marks the payment as completed and the transaction goes to a COMPLETE state.

2. invoice is unpaid (negative):

{
"status": "close-unpaid",
"user_payment_id": "..."
}

Upon receipt of this notification, Piano revokes access, cancels the subscription, and marks the payment as canceled.

To transfer the notification JSON we use https://jwt.io/. That means that you need to encode the notification JSON using BASE64 and append it with a sign. We use the IPN secret key from the Piano dashboard’s payment provider configuration to check the sign.

Messages should be signed with a 256-bit key (see configuration "IPN secret key" field). To transfer notification JSON we use JWT. That means you need to encode the notification JSON using BASE64 and append it with a sign. We use the IPN secret key to check the sign. The default JWT uses HMAC-SHA256 for signing but the algorithm might be changed. To work with JWT we use libraries, so we are not limited to HMAC-SHA256.

The full list for now is: HS256,HS384,HS512,PS256,PS384,PS512,RS256,RS384,RS512,ES256,ES256K,ES384,ES512,EdDSA.

Renewal Process

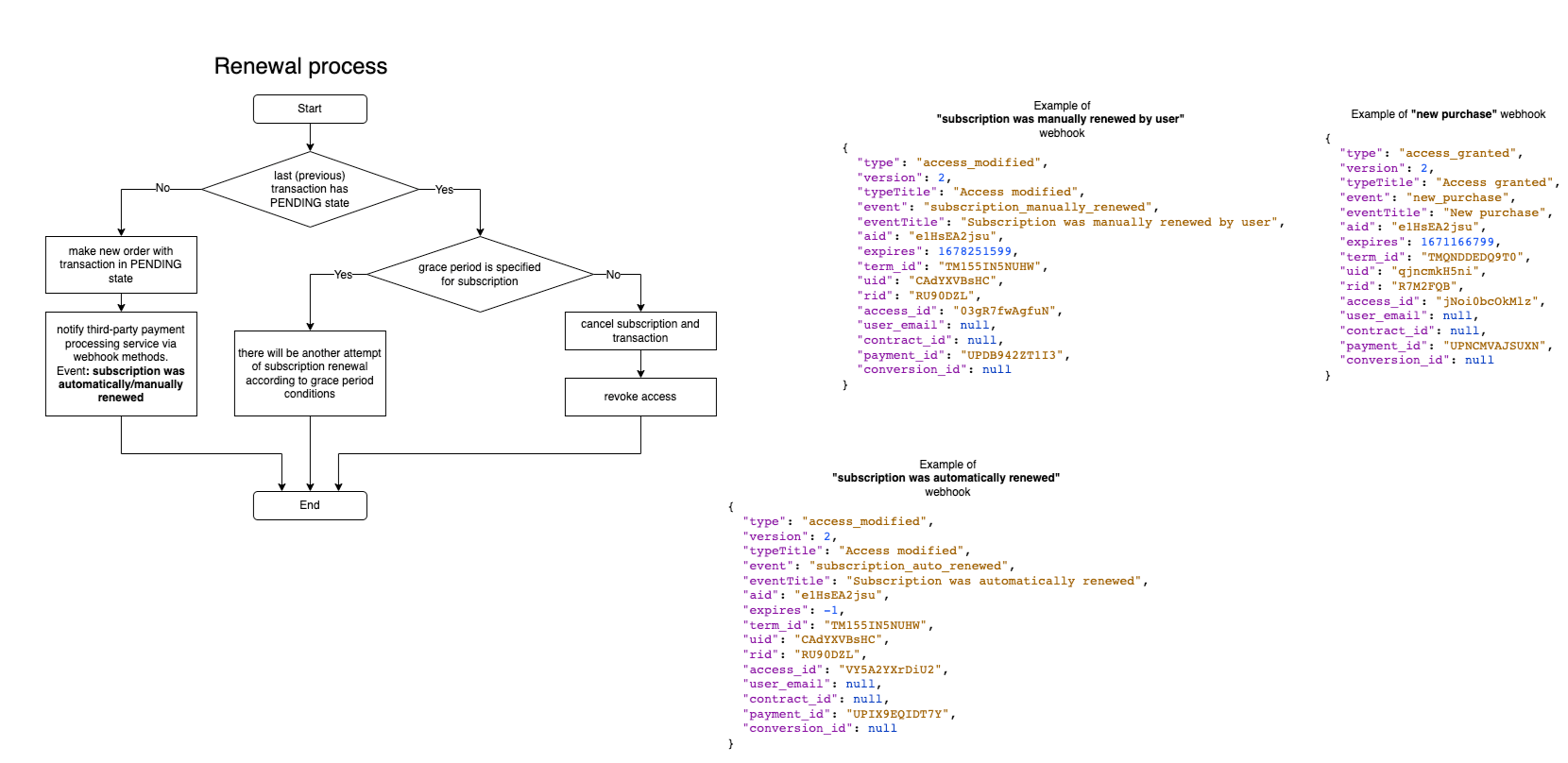

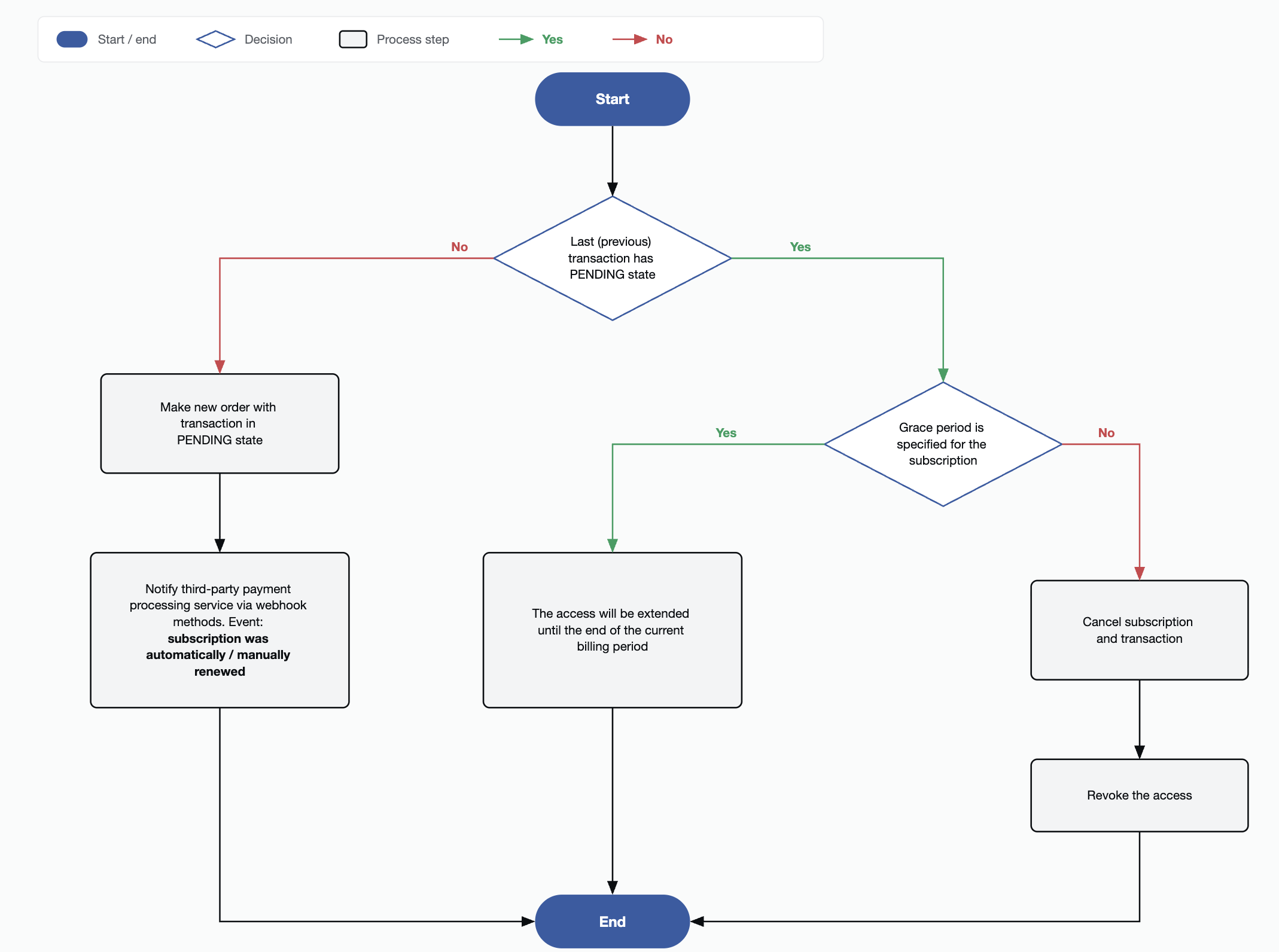

Below is a diagram of how the renewal process works on the backend:

[image-zoomable] [/image-zoomable]

If the subscription payment has a PENDING state at the time of renewal, then such a subscription will be canceled during processing. If the subscription payment has a COMPLETE state, a new payment with a PENDING state will be created and the client will be notified via webhook with the type Subscription was automatically renewed.

Note: Transactions in the PENDING state can not be refunded.

Refer to our docs for the available webhooks and see also the below section.

Webhooks

A new webhook for refunds for full and partial refunds is now available. The Payment refunded webhook provides the following data:

• payment ID,

• refund amount,

• AID,

• UID,

• subscription ID,

• access ID

The newly implemented webhook is available for all payment methods (invoice, card, wallet methods, etc.).

Known Limitations

Please note as the method name indicates, Invoice Option methods are asynchronous payment methods, highly dependent on the 3rd party system to act and subject to your custom implementation. Therefore, it is not expected a fully synchronous checkout process can be achieved by implementing these methods.

It is important to keep in mind that while Piano handles the payment method in reference to features used within its own system, due to a fully asynchronous flow some features may not work the same as, for example, card payments via synchronous integrations, and the payment processing is dependent on your ability to process webhooks.

Please note that upon checkout completion with invoice methods, all relevant entities are created, such as subscription, access, and conversion and they cannot be reversed, only cancelled. This means that if your integration approach reports a 'close-unpaid' IPN immediately or shortly after checkout completion, the transaction and subscription will be cancelled, and access revoked, creating a churned subscriber and exhausting the first-time customer status in relation to the term settings. This status is used for some of the features such as the term setting "First-time customer only". It is recommended not to use closed-unpaid IPNs as a means of restarting the checkout, instead retain the user payment in a pending status until the payment has been completed or terminally fails. This implies you may want to retarget the user in order to complete the payment rather than start the checkout from the beginning again. The same applies to the checkout abandonment segment if the user has proceeded to purchase via invoice method and completed Piano checkout.

Additionally, while adding/updating an invoice method in My Account, note the actual payment method tokenization needs to happen using your own interface. Therefore, you may want to consider directing the user to your own interface for adding/updating payment methods in case tokenization is required and an actual invoice is not issued by your system for the user to pay offline (by sending your invoice via email or post).

Frequently Asked Questions (FAQ)

Product / Features

1. What are the limits of this integration - which Piano functions will not be available to us? See the feature support table above.

2. Comparing this integration with Braintree - are there any features that will not be available to us? Keep in mind that, this is an asynchronous flow, so the payment is handled on your side, please refer to the feature support above.

3. Are there any integration boundaries that we should know and remember (because they will be independent of the development of the Piano platform)? There are no specific boundaries, we will want to ensure new features are supported for this method, provided they can be. But in comparison with Braintree, this async flow grants access to the user immediately.

4. Does the integration allow the use of upgrades? Yes, upgrades work, but two transactions in pending status are created.

5. Will promo code and trial periods work properly via Piano by the book? Yes.

6. Will gift deals work properly? Gift terms are also supported.

7. Will Site licensing be available? Yes.

Payment methods

1. Does the integration allow us to add any payment method (handled by our side) without the need for Piano support? There are currently only two options for async/ invoice methods, but they are flexible, depending on your integration, you could potentially handle multiple methods under the single method option.

Technical / Documentation

1. Are the mentioned webhooks available in the dashboard (Manage → Webhooks)? Yes.

2. Can we add more invoice payment options? Not immediately as it requires development, but we can consider adding more options in the future, based on gathered feedback across clients.

3. Can we separate entirely the Payment functionality from the Piano platform? We want to handle the payment process on our site and send to Piano all the needed information. - Yes, to an extent, in Piano with these methods we’re not accepting sensitive payment information, this will live on your end, however the subscription date, transaction statuses, and subscriber data, this is all in Piano, Piano will also run its renewal job and trigger webhooks for you to act on running payment on your end.

Analytics / Data

1. Will all current data on transactions and purchase history be available in the Piano panel (for us) and for the user (in the My Account)? Yes, the payment method will be named whatever you name it in your configuration.

2. Will the data in the generated (transactional) reports be unchanged? Yes, but some transactional data will not be stored by us, since the transaction will happen outside (referring primarily to an external transaction ID, etc). We have also introduced a new transaction status: Pending.

Migration

• How do I migrate to invoice options 1 or 2 from an existing provider or method?Follow the steps below to migrate active subscriptions from an existing payment provider to the Piano invoice payment method (option 1 or 2):

  1. Generate a list of active subscriptions. Create a list of all active subscriptions using the payment method that is to be migrated.
  2. Enable the invoice option. Enable invoice option 1 or 2 in your Piano configuration (under Edit Business → Payment Provider).
  3. Prepare the import file. Request migration support and populate the import file as follows:

  ext_payment_id (token) = subscriber email
  ext_customer_id = subscriber email

  4. Import payment methods. Request the import to be processed with the import file. This will create payment methods (invoice payment option 1 or 2 as configured) per subscriber and generate a user_payment_id for each.
  5. Map payment identifiers. The generated user_payment_id values should be used as the key identifier to link to the previous payment method token and/or external IDs for further webhook processing.
  6. Update active subscriptions. Update all active subscriptions to use the new invoice payment method. This can be done via the Piano API or by requesting Piano support to update them on your behalf.
  7. Plan the migration timing. Consider the period of time during which the migration takes place. During the transition window, some subscriptions may still be on the old payment method while others are moved to the new one. Plan accordingly to avoid missed renewals or duplicate charges.

Last updated: June 25, 2026
