Stripe

Stripe overview

Stripe is a payment provider working with businesses of every size—from new startups to public companies. More information about Stripe pricing is available under the following link.

You can easily sign up or connect your existing account directly through the Piano dashboard (under Edit Business → Payment Provider → Stripe).

Please note, that Piano handles all billing and payments, you do not need to use Stripe billing.

Piano currently features multiple Stripe integrations. Stripe Elements is the latest version with many new features and methods, with more coming on a regular basis. Stripe Credit Cards only enables card payments and Stripe Apple Pay enables Apple Pay payments. You can use any combination of these integrations, target them using checkout flows or enable Apple Pay Frictionless checkout. If you’re looking to use Cards, Google Pay, Direct debit, or popular local Bank redirect methods, then enabling Elements is the right choice. You can offer Cards separately using the Stripe Credit Card version, or use Stripe Elements to offer cards along with other methods.

Supported countries

Stripe is supported in the countries listed on https://stripe.com/global, please note some countries may have additional limitations or may be in beta/preview by Stripe and not available via Piano.

Review the Stripe Payment method country availability list to understand which countries are supported by the available methods.

Supported currencies

Please note that when processing transactions through Stripe, it is crucial to refer to their documentation on supported currencies and charge amounts. Stripe provides comprehensive information on the minimum and maximum charge amounts for each supported currency. Any attempts to make charges lower than the specified minimum amount are likely to result in a decline or error. For detailed insights, please consult the Supported currencies section of the Stripe Documentation.

Piano supports the following Stripe supported currencies:

Before adding a payment method in My Account or publisher dashboard, we display a currency selection dropdown whenever multiple currencies are available based on the payment provider configuration. The currency selector is injected into the page via JavaScript, so no template modifications are required by default. However, if a publisher needs to position the currency selector in a specific location within the template, this can be implemented using one of the supported customization methods described here.

Supported features and functionality

Please click on the "Fullscreen" option below to enlarge the table to show all available payment method features.

*Stripe does not support BACS in the SetupIntent API for adding a payment method.

**The Grace and Retry functionality is not compatible with asynchronous payment methods, likewise there is no retry logic available on Stripe for this type of method. Consider adding information and additional guidance to your Payment Renewal Failure email notifications (e.g. "If you paid with SEPA Direct Debit, updating your method in the My Account will not reactivate your subscription access, instead please select one of the options from our offer on ").

***Payment token import is supported. Please visit this link for more information.

To facilitate payment token imports, specific information is needed for the following payment methods:

• For Link and ACH, the payment method token is required.

• For SEPA and Bacs, both the payment method token and mandate ID are needed.

• In the case of Bank redirects, the payment method token along with the SEPA ID is required.

Additionally, if necessary, the supported provider input parameters for tax information can be provided.

****Apple Pay as a payment method is currently not supported for frictionless checkout with Dynamic terms that have a first free period.

¹ To enable Apple Pay, the merchant must verify their domain in accordance with Stripe's requirements. Domain verification is a mandatory step that allows Apple Pay to be used securely on the website. Before Apple Pay can be activated, the domain hosting the checkout or payment page must be registered and verified in Stripe. For detailed instructions, refer to Stripe's Apple Pay domain registration documentation.

Passive Churn Prevention

It's crucial to understand how the various error codes that may arise during a payment failure are handled by the Passive Churn Prevention feature. These error codes provide insights into why a renewal attempt may have failed, enabling you to take appropriate actions to prevent churn. This section details the specific error codes encountered during a payment failure and their mapping to a decline reason.

Handling of Chargebacks and Disputes in Piano

When a chargeback or dispute occurs for a payment processed through Stripe, Piano handles these events by integrating with Stripe's webhooks to ensure accurate payment status updates and to prevent double refunds. Note that the dispute management function is not Piano functionality, clients must use the Stripe dashboard to manage dispute process.

When an end user requests a chargeback through their bank, and the dispute process terminates, Stripe notifies Piano via webhooks such as charge.dispute.closed or charge_refunded. Upon receiving a charge.dispute.closed webhook with a status lost or a charge_refunded webhook, Piano checks the charge_id in the webhook and identifies the related transaction and user payment. If the original user payment status is COMPLETED, Piano changes it to REFUNDED and ensures no further refunds can be issued for this payment.

The dispute amount is stored in the refundedAmount field of the user payment, whether it is equal to, less than, or more than the original transaction amount. If the chargeback amount is higher than the original user_payment amount (e.g. due to currency conversion), the refund amount in Piano will be limited to the original user_payment amount. Multiple chargebacks for a single payment are not supported, as a payment can only be refunded once. Standard email notifications and history events for refunds are also generated in the My Account and Publisher Dashboard, and the status changes are reflected in transaction logs, revenue reports, and access reporting logs.

For direct debit disputes, which are always lost and resolved with refunds, Piano checks the mandate status after receiving the charge.dispute.closed webhook and marks the mandate as inactive in the system.

How to enable Stripe Elements in Piano

Using Stripe Elements you can sign-up or authenticate using your Stripe account directly from the Piano dashboard.

Payment Provider Configuration

You can input your Stripe account information into the Piano dashboard by clicking Edit Business→Payment Provider→Stripe Elements (Add New).

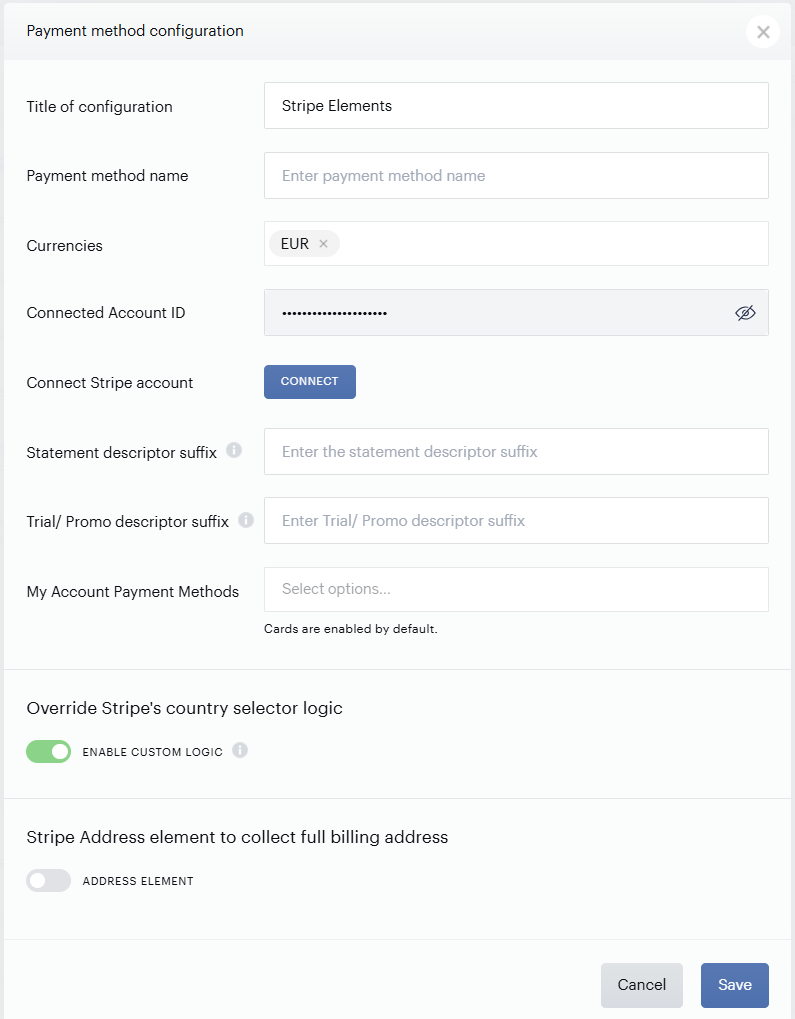

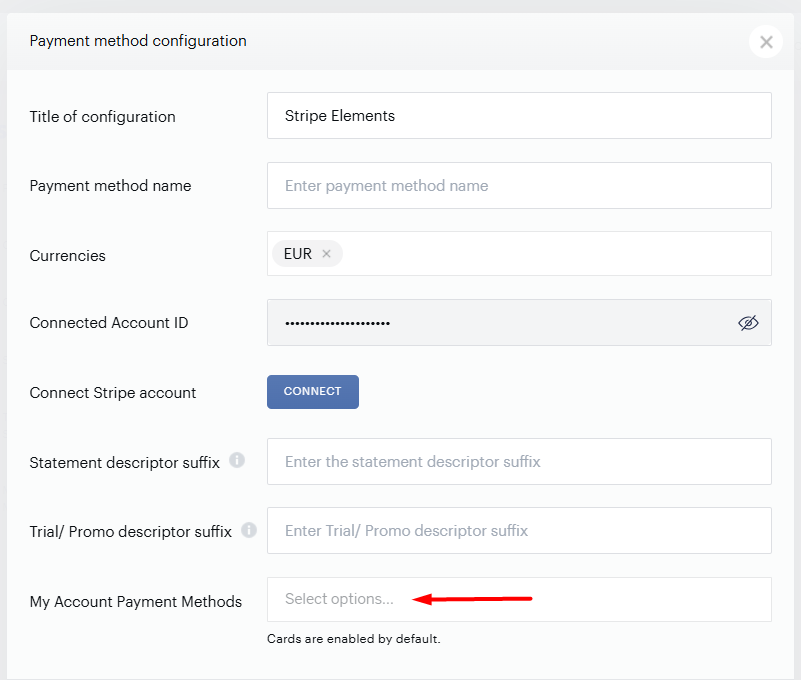

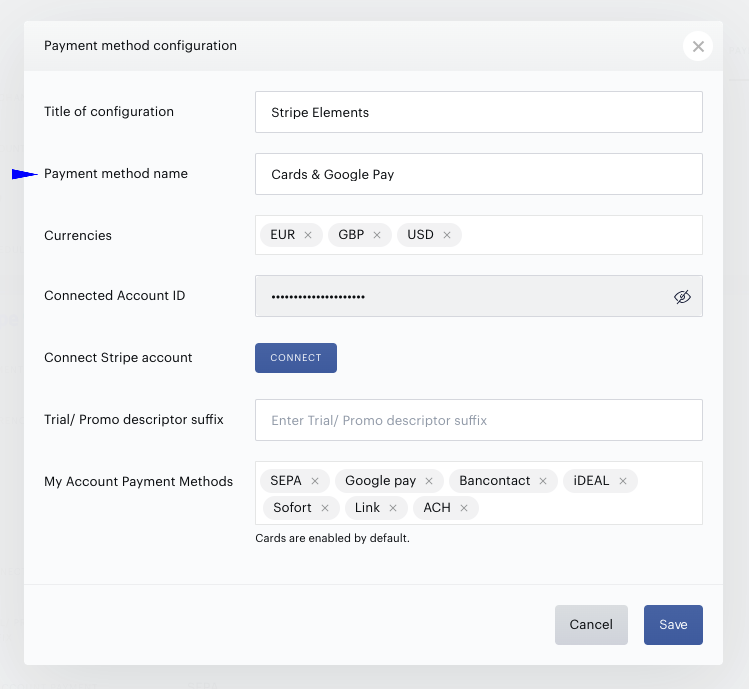

To integrate Stripe Elements with Piano, have the following information ready to enter into the form fields and then click Save:

• Title of configuration: The name of this integration (for your reference only)

• Payment method name: This field allows you to easily change the naming of the provider in the interfaces in My Account and the Publisher Dashboard without changing any template(s) code.

• Currencies: you will need to select the currencies that are to be supported.

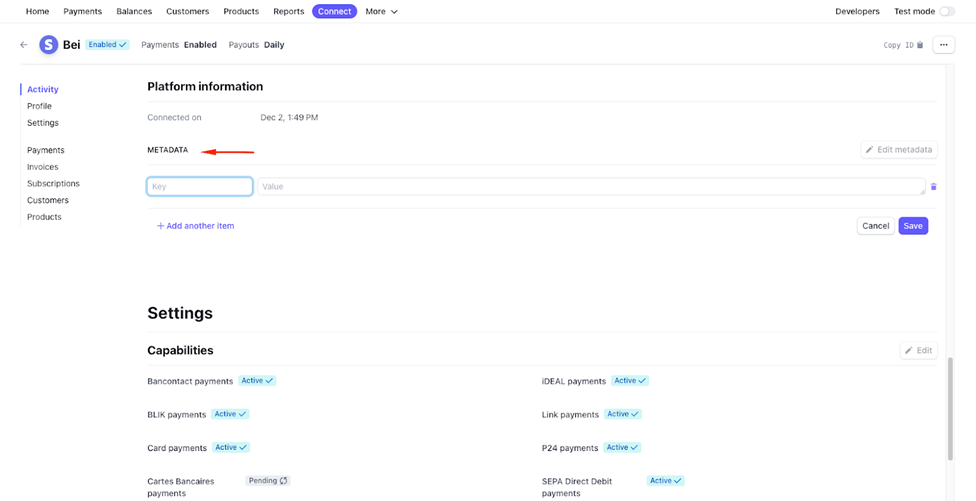

• Connected Account ID: For this field to be populated, in the configuration, click Connect and then follow the flow, if you have an existing account, you will be able to authenticate into this account and connect with your Piano application. If you don’t, follow the onboarding process and create a new Stripe account.

• Statement descriptor suffix: Select a short descriptor suffix for a user to identify the transaction executed. The suffix should be up to 13 characters, including at least one letter, and can't include special characters like < > \ ' " *. The description prefix can be configured in your Stripe dashboard as explained here.

• Trial/Promo descriptor suffix: Enter a descriptor suffix for trial or promo payments.

• My Account Payment Methods: This enables payment methods available in My Account's "Add a payment method option". This setting is independent of what is shown during the checkout process. Even if you disable a payment method in My Account, if it is enabled in your Stripe account it might still appear during checkout. This option is there specifically to tailor the My Account experience.

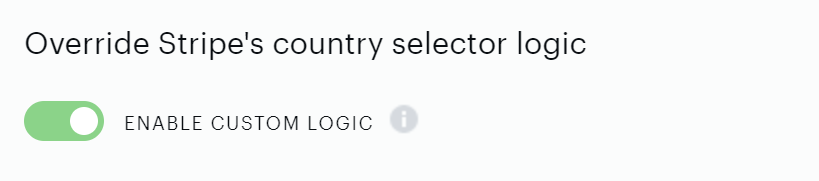

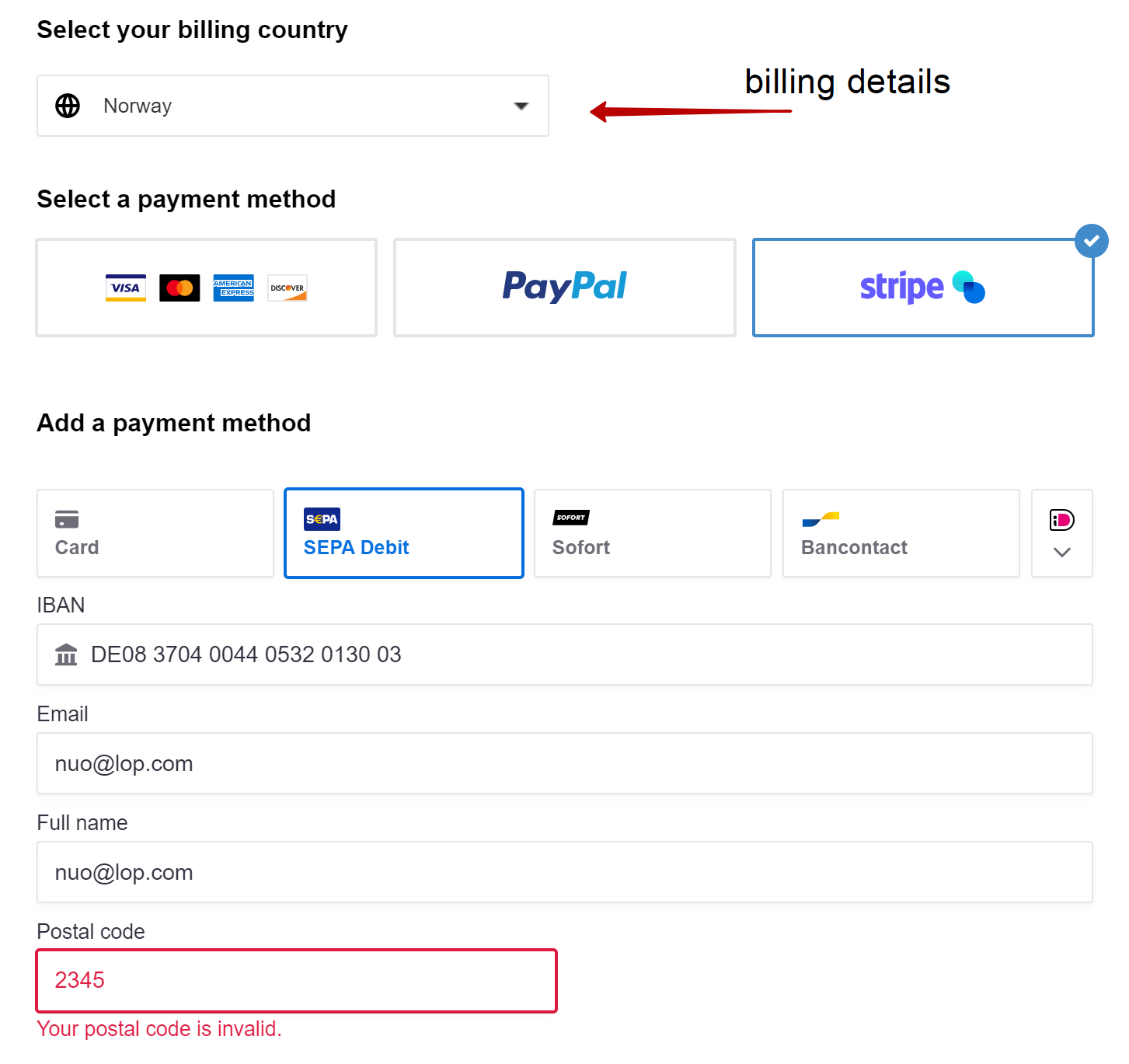

• Enable custom logic: If Custom logic is enabled, the Postal code field in Stripe’s iframe for US and Canada is hidden, in case that field is predefined by settings or taxes. More details are available here.

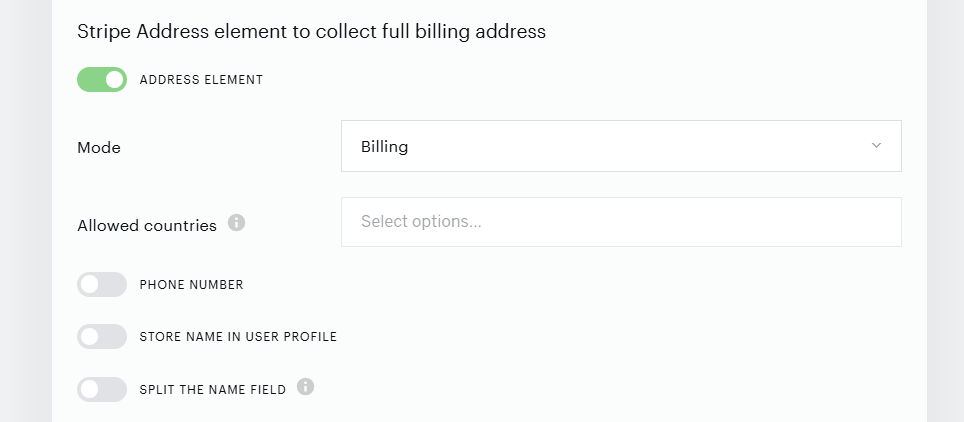

• Address element: If enabled, allows you to configure the way the address is collected via Stripe's Address element in checkout. More details are available here.

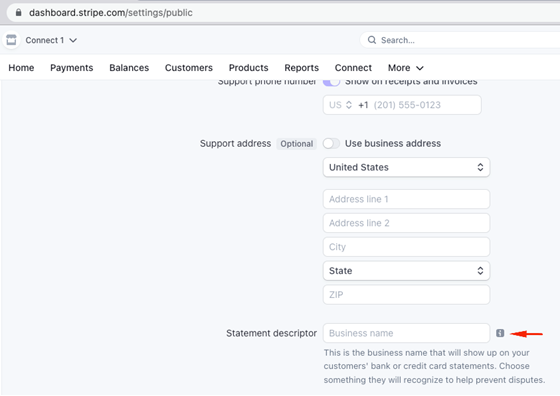

Please note the Statement descriptor prefix is available in your Stripe dashboard, see this doc and the below screenshot for further details, you need to specify it in addition to the suffix set up in the Piano payment provider configuration.

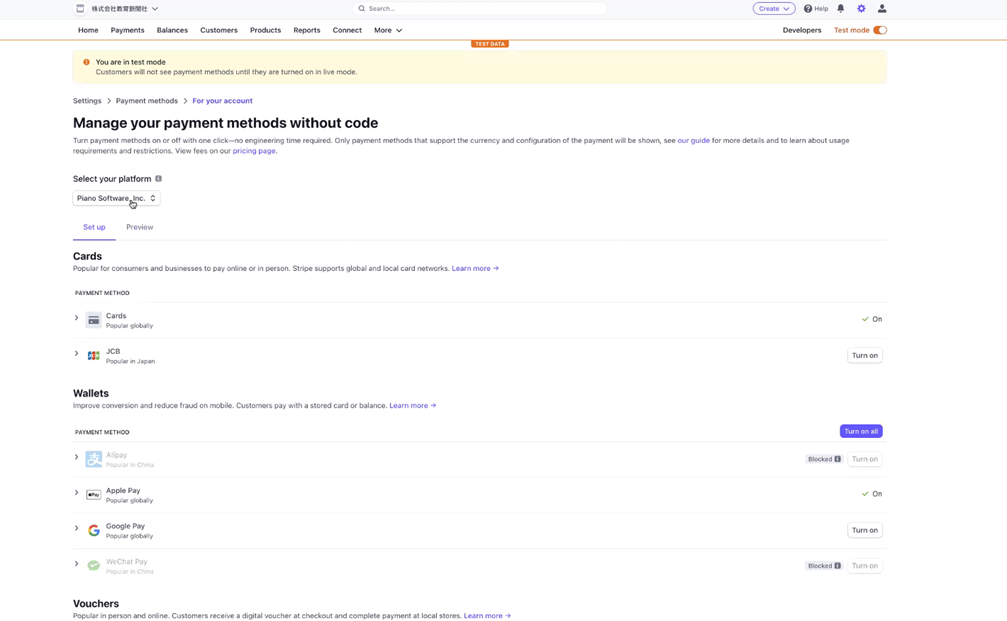

Payment Method Configuration in Stripe

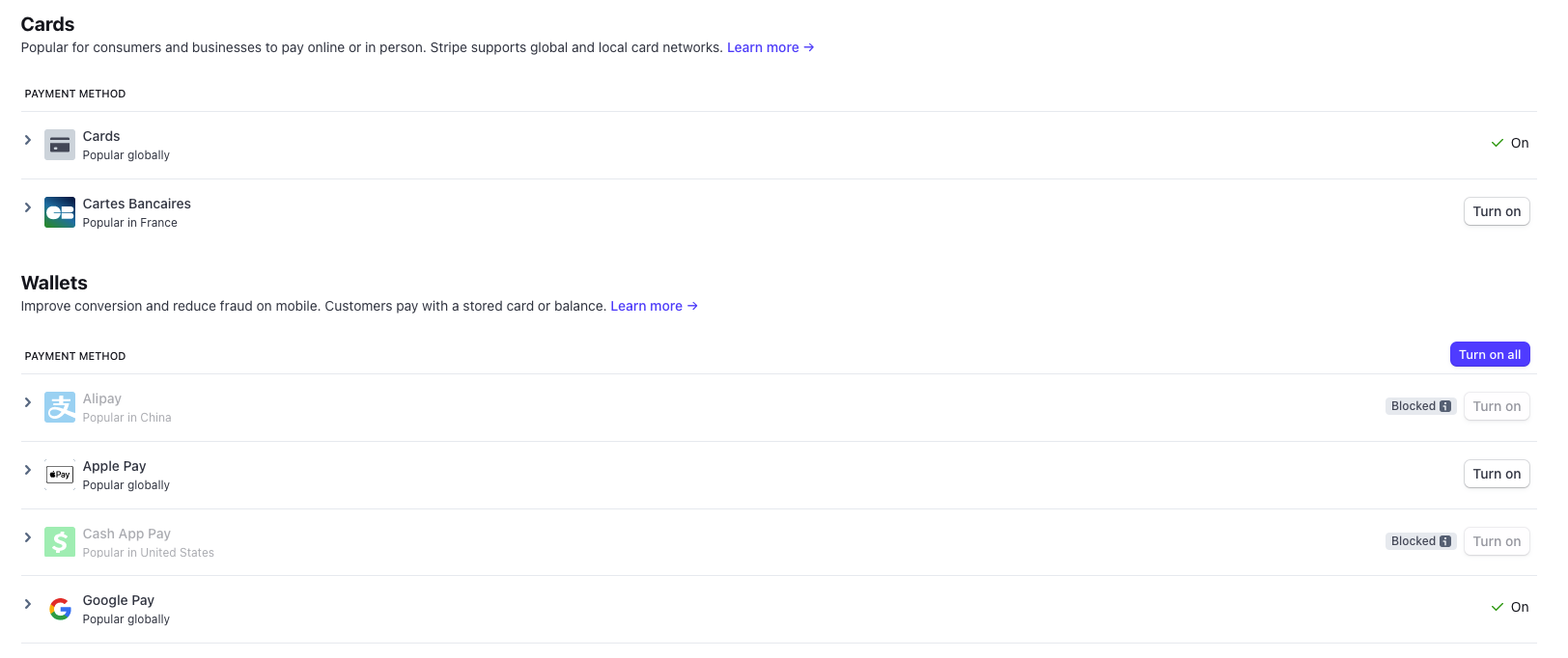

By default, Cards (including Japan-specific installment cards) are enabled in your Stripe account and cannot be disabled.

Additional payment methods are turned on by default depending on the environment:

• For EU, AP, AU dashboard applications Link is enabled by default.

• For US dashboard applications Apple Pay and Google Pay are enabled by default (Link is disabled).

All other methods such as SEPA, BACS, Ideal, Bancontact, and ACH are disabled by default in your Stripe account settings. To use these, you will need to enable each method manually in the Piano Software, Inc. configuration within your Stripe account settings (see screenshot example).

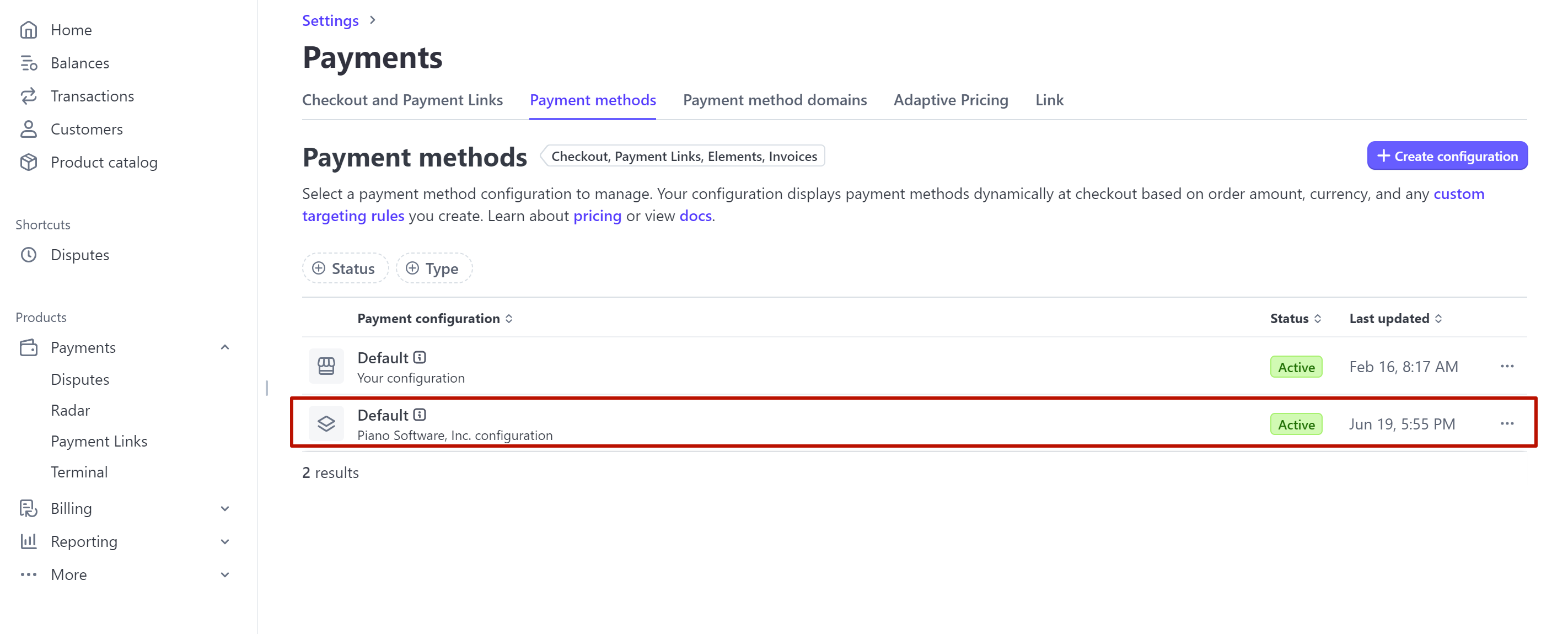

It’s important to note that enabling these payment methods in "Your Configuration" within Stripe does not affect the Piano checkout; only the methods configured under Piano Software, Inc. will be recognized.

Please review each setting as some of these methods require further configuration on your side. Apple Pay can be configured either as a payment method within Stripe Elements or through the dedicated Stripe Apple Pay integration. Merchants must ensure that their domain is registered and verified in Stripe in accordance with Apple's requirements.

Enabling methods in My Account

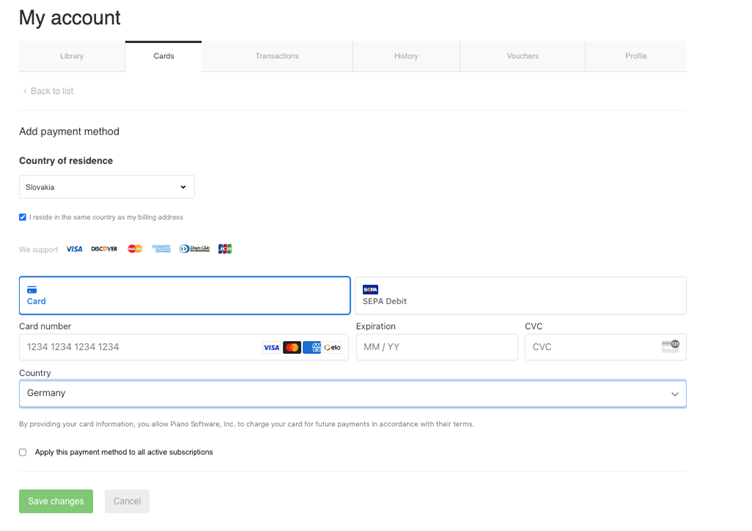

To enable specific methods in your My Account widget you need to have the given methods enabled in your Stripe account, then you can easily activate them in your Stripe configuration in the Piano dashboard under Edit Settings → Stripe Elements → My Account Payment Methods:

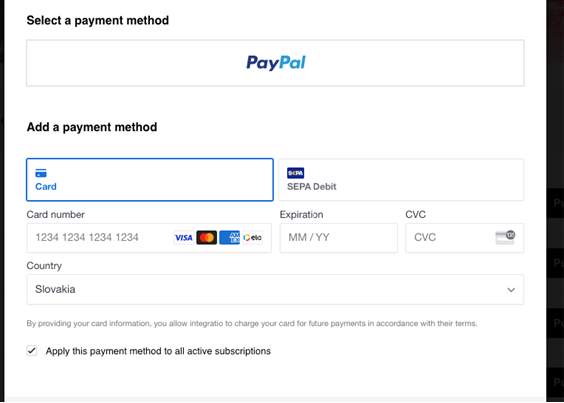

When enabled, it will automatically appear as one of the options users can select to add it in My Account.

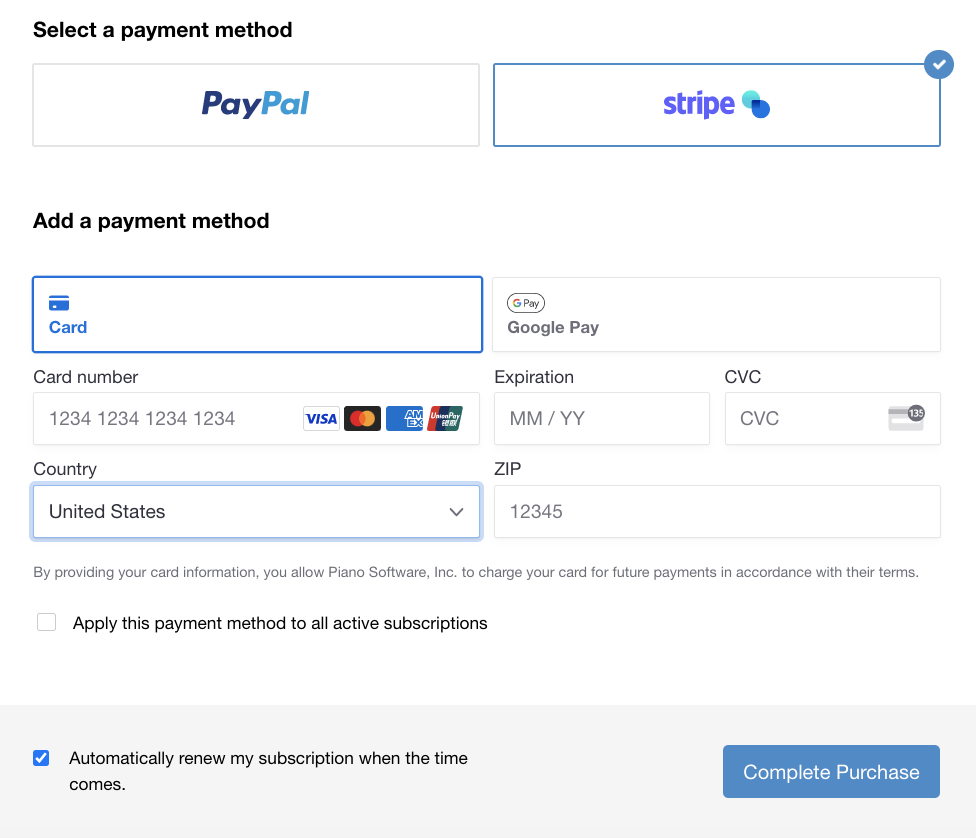

Due to the nature of Stripe Elements, multiple options are displayed under Add a Payment method. You can customize the copy in the My Account system templates as desired.

Card payments

Card payments are enabled by default, if you wish you can enable additional card payment types in your Stripe dashboard. For testing cards see this page. More information about how to perform payment testing on the Production dashboard is available here.

Piano's integration with Stripe supports co-badged cards, which are payment cards featuring multiple card networks, allowing users to select their preferred network during transactions. For more detailed information, visit Stripe's Co-Badged Cards Documentation.

Google Pay

Disabled by default and can be enabled in your payment method settings, it will be shown automatically in Chrome browser.

SEPA and BACS payments

Disabled by default within Piano Stripe's integration, please review the payment method manual settings configuration in your Stripe account, and ensure it is fully configured in your Stripe application, for SEPA you will also need to provide an identifier.

• SEPA - Country of operation has to be from the EU

• BACS - Country of operation has to be the UK

For testing please see these instructions.

Please note, that SEPA and BACS Direct debit methods are asynchronous payment methods, which means payment confirmation is not immediate and it may take up to 14 days, although in the majority of cases, it is usually confirmed within 5 days from the purchase. During such a confirmation period, you will see transactions made with Direct Debit methods in “Pending” status until they get confirmed or in some cases declined (in which case you will see the transaction in "Canceled" status, and the access will be revoked and subscription canceled).

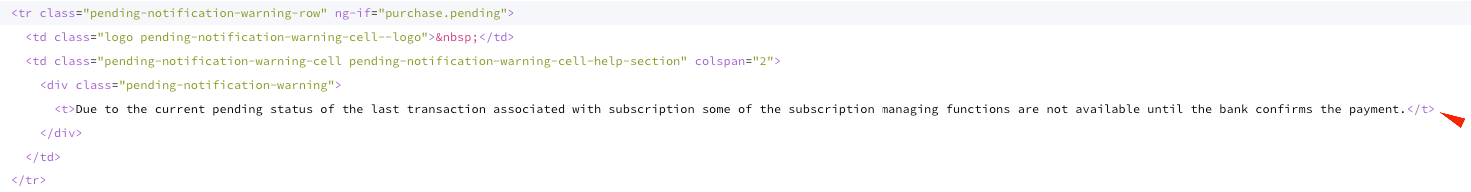

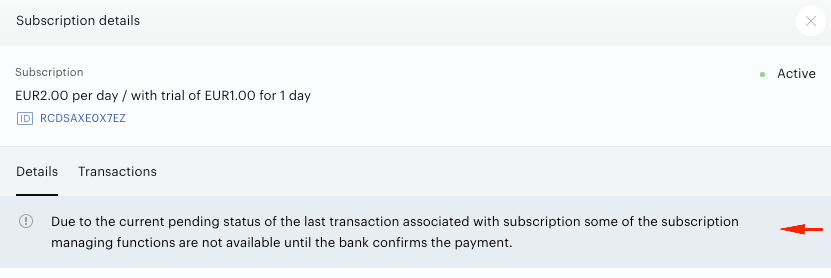

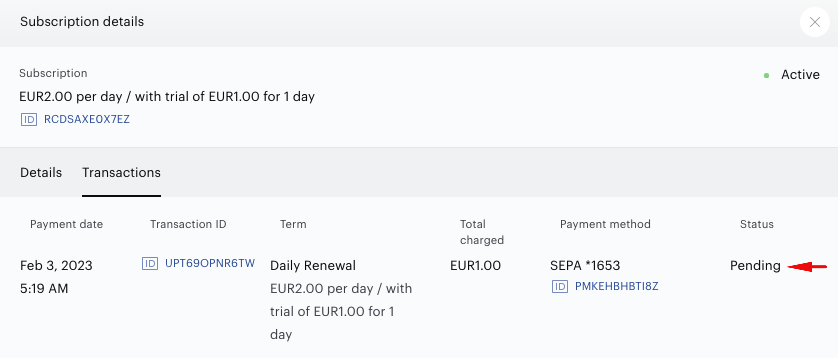

When the transaction is in "Pending" status, subscription managing functions that affect payment processing will be disabled until the transaction has been confirmed.

The same message appears in the My Account when asynchronous methods are used. Please see the last FAQ on how to modify this message.

Note that SEPA and BACS (as well as ACH) refunds via the Piano dashboard are processed asynchronously. This will show an extra status "Refund requested", and once it’s been processed it should change to "Refund completed".

Email notification updates

SEPA and BACS email notification updates

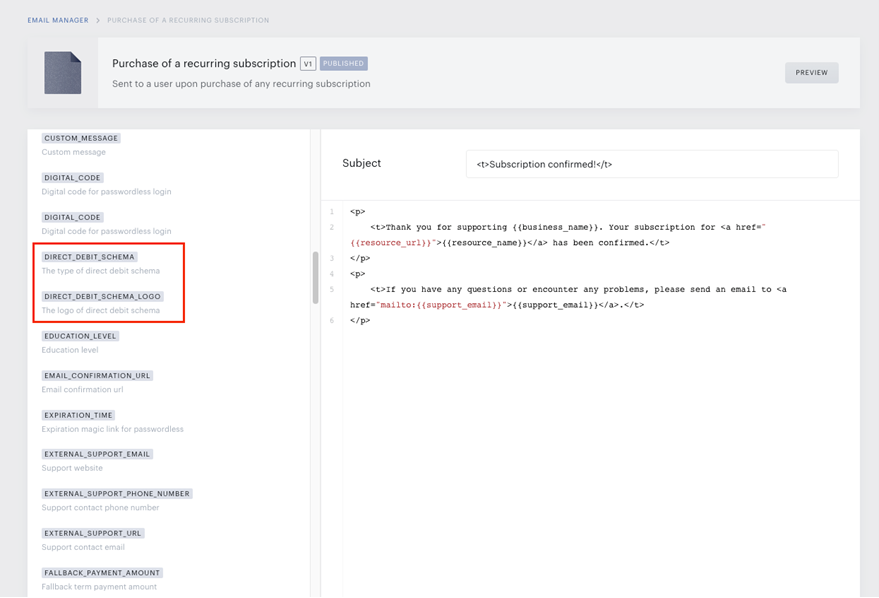

To comply with the rules for direct debit notifications*, existing Piano notifications have been updated to include required variables. To comply you will need to review the SEPA debit notifications requirements and/or BACS rules and make updates to your email notifications accordingly, using the variables:

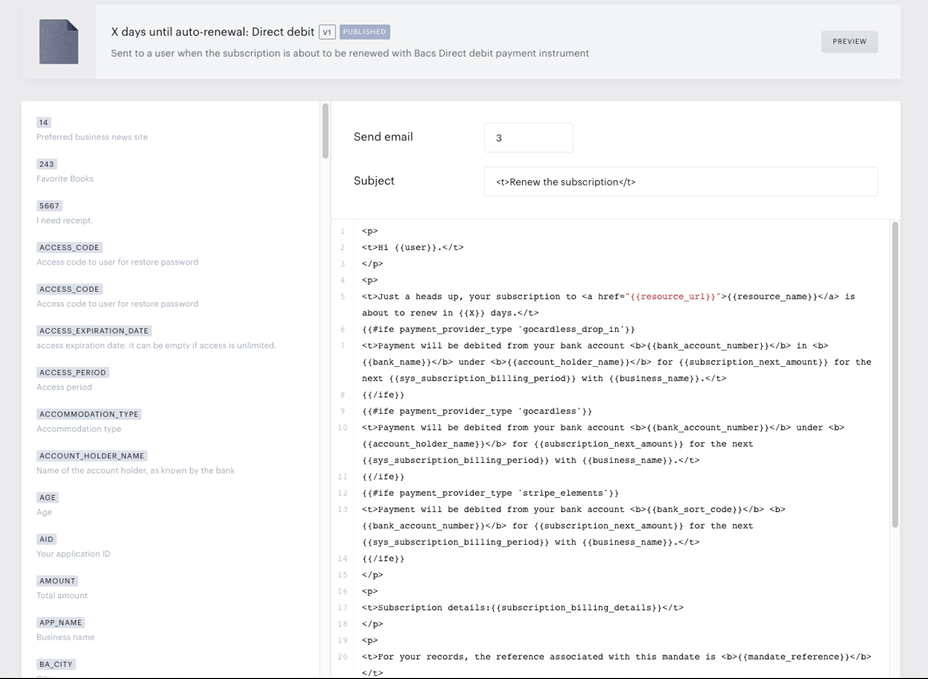

Additionally, for the Direct debit, a new email notification X days until auto-renewal: Direct Debit has been added to Email Manager to comply with BACS rules.

When selling via BACS or SEPA, it's important to configure a Direct debit setup confirmation email for your customers.

This email serves as a confirmation for the mandate setup and should be sent at the time of the initial purchase or when a direct debit payment method is added to the wallet. However, note that in the case of adding a payment method to the wallet, billing details will not be included in this notification. This ensures your customers are informed about their payment authorization for direct debit transactions.

ACH email notification updates

Following the requirements for ACH processing, additional variables were added to the email notification Direct debit setup confirmation. If you offer ACH as a payment method and opted to use Piano email notifications then ensure that you configured this notification to be sent and review the following variables to be present (you may need to create a new version of the notification if the below doesn’t appear in your template);

• ACH AGREEMENT_DATE = CREATE_DATE

• BANK_NAME = will be automatically populated for the end-user

• BANK_ROUTING_NUMBER = will be automatically populated for the end-user

• ACCOUNT_HOLDER_NAME = will be automatically populated for the end-user

• Additional text was added to the notification for ACH payments:

  'You have authorized to debit the bank account specified above for any amount owed for charges arising from your use of services and/or purchase of products from s, pursuant to website and terms, until this authorization is revoked. You may amend or cancel this authorization at any time by providing notice to with 30 (thirty) days notice.'

Direct Debit setup confirmation

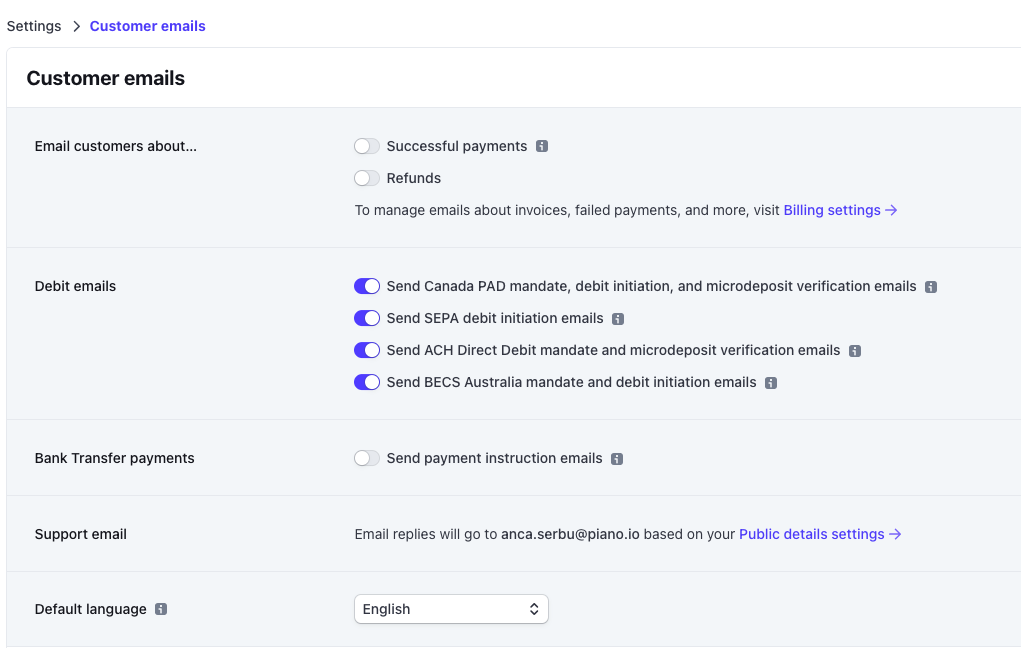

You can either enable Direct debit emails to be sent automatically from Stripe or configure Piano email notifications as described above. If you decide to use Piano notifications, please make sure to disable the Stripe notifications in your Stripe dashboard.

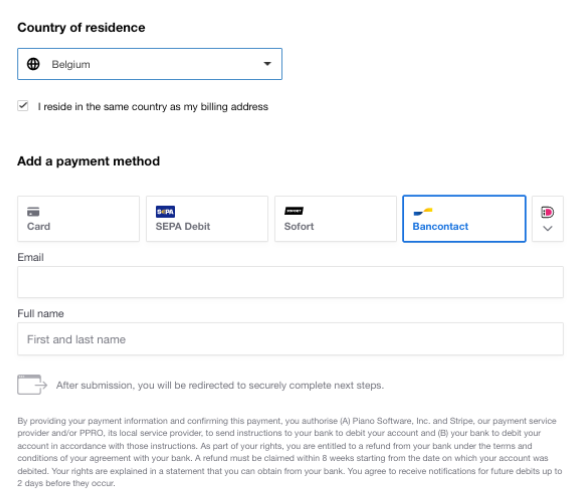

Ideal and Bancontact

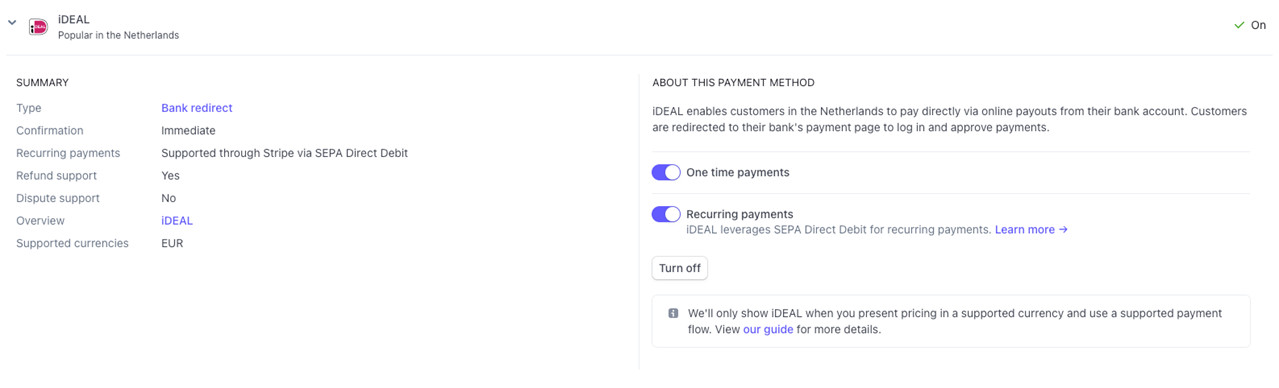

To enable the bank redirect methods such as Ideal, or Bancontact, you need to have Stripe Elements implemented. Once implemented you will just need to go to your Stripe Dashboard and turn these methods on. They will automatically appear in your checkout.

Please note the Name field is required for these methods due to the SEPA mandate set up.

Recurring payments are supported for all methods via SEPA Rails. This means the initial payment is made via one of these and as part of this transaction, the Sepa mandate is automatically set up, as long as you have configured Recurring Payments support on your payment method in the Stripe Dashboard. You will need SEPA enabled in your account as well in order to support recurring direct debit payments.

Indian Cards

Processing India-issued cards is affected by the RBI regulation and heavily impacts the payment processing for domestic Indian users. The majority of the features across MyAccount, Checkout and Dashboard are affected, because transactions require user consent and authentication to store the card and process the recurring payments, and for payments above 15,000 INR also an authorization upon receiving a pre-debit notification by the bank.

Given these limitations, some features cannot be supported or are not yet implemented due to increased complexity and additional infrastructural flows for mandate object handling when a stored method transaction is triggered.

• Cards must be authenticated via 3DS before they can be saved for future use. 3DS authentication made during a payment is sufficient to save the card information.

• Please note, that India recurring payments require Network tokenization, for more details on subscription impact see

  India Recurring payments

  .

• To support tokenization the Card Storage Consent flow will be triggered automatically by Stripe if both merchant and end-user are located in India and the term is in INR currency.

To support the recurring payment with no end-user a unique mandate needs to be set up for every subscription. The mandate relates all transactions associated with one subscription in the chain. So, to process the Indian recurring payments with saved cards both mandate and Consent are required.

If clients decide to use Stripe only for Indian cards, targeting users from India can be done in two ways:

1. Ensure INR currency is not available in any other provider configuration - and set your Stripe Elements configuration to work with INR currency only, this way the other provider will not appear in the checkout if any INR terms are selected.

2. Alternatively, a separate checkout flow with Stripe Elements can be configured to be used with an INR offer

Limitations:

• Due to the reason that one payment method instrument (card) can be used to purchase several subscriptions each one of the subscriptions requires a unique mandate to process the renewal transactions with no user present therefore the purchase with the saved payment method is currently unavailable in Checkout.

• Add a payment method and Update renewal payment method features are not available in MyAccount.

• The opt-out Consent for recurring transactions currently is not available due to Stripe limitations.

• During network tokenization, the cardholder can give consent to tokenize and save his card or not. In these terms, two scenarios are possible:

  • Customers who have tokenized their cards can use this card for processing future purchases with saved cards

  • Customers who choose not to tokenize their cards must enter their 16-digit card number, expiry, and CVV for all card transactions - card tokens cannot be saved in Piano.

  • The recurring transactions are asynchronous and may take up to 72 hours after the renewal date due to the Stripe referring to the third party and waiting for the end-user's pre-debit confirmation to be completed.

• The recurring payments of more than 15000 INR (~$183) will always require 3ds authentication. The link to authentication will be sent along with a pre-debit notification by the bank to the end user.

• There are specific test cards to test mandates see India recurring payments - different cards would allow you to simulate different scenarios.

• See the table below for more details on feature-level support by this method.

Stripe India Cards - Dynamic term support

In general, the recurring transactions are asynchronous and take 72 hours after the renewal date due to Stripe referring to the third party and waiting for the end-user’s pre-debit confirmation to be completed.

For the Indian cards, Piano sends mandate data with the amount of subsequent transactions. Pre-debit notifications are sent on the Stripe side, as such Piano requests are subject to approval/decline response. Piano initiates renewal payment and for each dynamic subscription term, the highest amount, which does not require the subscriber’s approval every time a subscription is renewed, (amount=14999), and maximum amount type are passed in the requests. In case the amount changes the transaction could be declined if higher than initially set up for within the mandate and/or if the amount is higher than 15000 INR, end-users will also get an SMS with a link to cancel as per the regulation which may lead to a higher decline rate. In general, dynamic terms can be used for India recurring payments, but how successfully can they be "dynamic" in practice is difficult to predict and therefore we recommend caution when it comes to amount changes or billing periods shorter than 72 hours when offering dynamic terms in this market. Likewise, please review the feature support table as some features cannot be supported.

CH - Checkout, MA - MyAccount, PD - Publisher dashboard.

Additional notes

*Please note, given the limitations imposed by RBI, some features cannot be used currently and a workaround should be considered (e.g. upon failed renewal, instead of guiding the user from the email notification to the MyAccount, ask the user to go to offer page/checkout page and sign up again in order to capture consent and authentication).

The opt-out card storage consent flow is not available in Stripe, because the PaymentIntent API works only with the Stripe consent flow, as such 3rd party flow cannot be implemented by Piano, therefore Opt-out Card Storage Consent option is not available.

Stripe Credit Cards

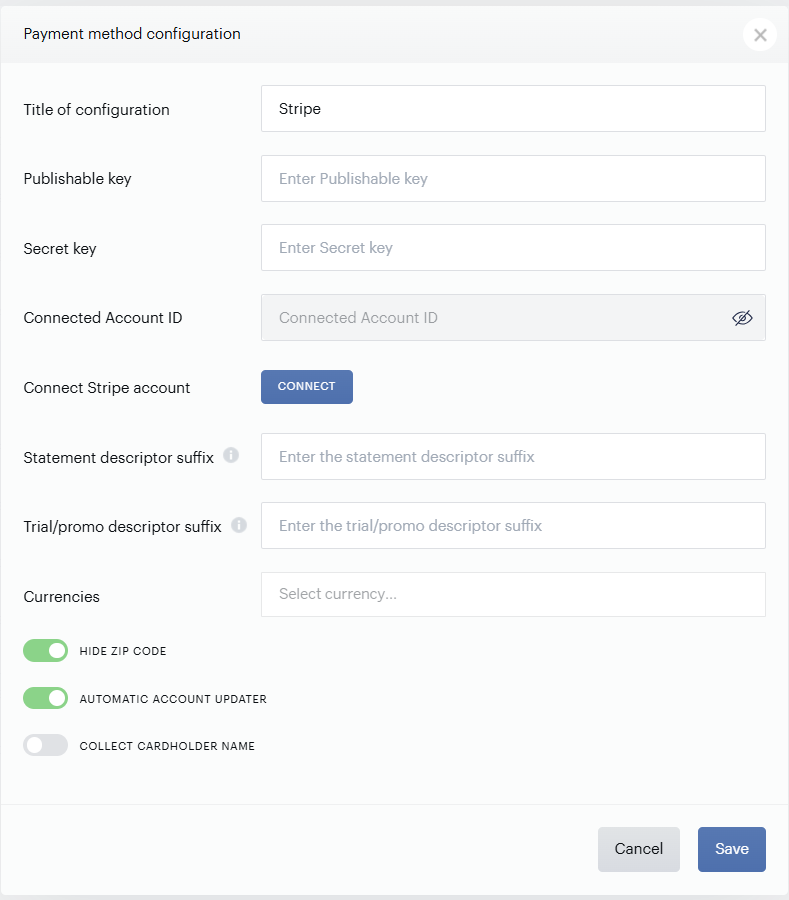

To integrate your Stripe account with Piano, simply click Edit Business → Payment Provider → Stripe (Add New).

• Title: Pick a title for your configuration.

• Publishable key: No longer required, please use Connect button to authenticate your Stripe account instead.

• Secret key: No longer required, please use Connect button to authenticate your Stripe account instead.

• Statement descriptor suffix: Select a short descriptor suffix for a user to identify the transaction executed (for example, "TEST123"). The suffix should be up to 13 characters, including at least one letter, and can't include special characters like < > \ ' " *. The description prefix can be configured in your Stripe dashboard as explained here.

• Trial/Promo descriptor suffix: Enter a descriptor suffix for trial or promo payments.

• Currencies: Choose one or multiple currencies from the list of available options.

• Hide Zip code: Enable this toggle if you don't want users to need to enter a zip code during checkout.

• Automatic Account updater: This toggle is no longer relevant, once you Connect your Stripe account and enable account updating in Stripe, Piano automatically processes all updates. You do not need to enable this toggle, it is pending to be removed from the interface.

  If interested, you can use Stripe's webhooks to be notified before or after a card is automatically updated. Listening to payment_method.automatically_updated will notify you of automatic card updates from the network. The event includes the card’s new expiration date and last four digits, should you need to update your own records.

  More information about this functionality is available here.

• Collect cardholder name: Allows you to optionally collect the cardholder's name during payment processing for enhanced 3DS authentication and compliance with Visa’s updated mandatory data requirements. When enabled, a text input field will appear on the payment interface, requiring users to provide their cardholder name (up to 50 alphanumeric characters). Ensure that your system templates are updated before enabling the Cardholder name option in the configuration as described here.

Once all the settings are filled in, click Save.

For Piano clients using Stripe, Piano supports Apple Pay as a payment option. For more information on how to enable Apple Pay, please see this article.

Stripe Apple Pay

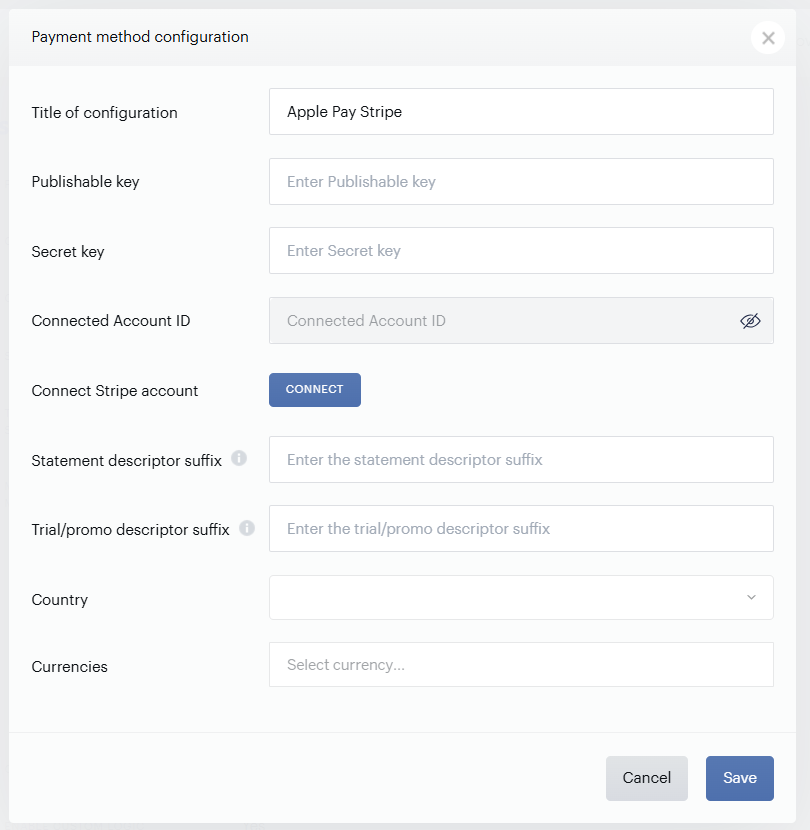

In the Piano dashboard, click on Edit Business and navigate to the Payment Provider tab. Add the Apple Pay Stripe configuration by clicking on the appropriate Add button on the left side of the screen:

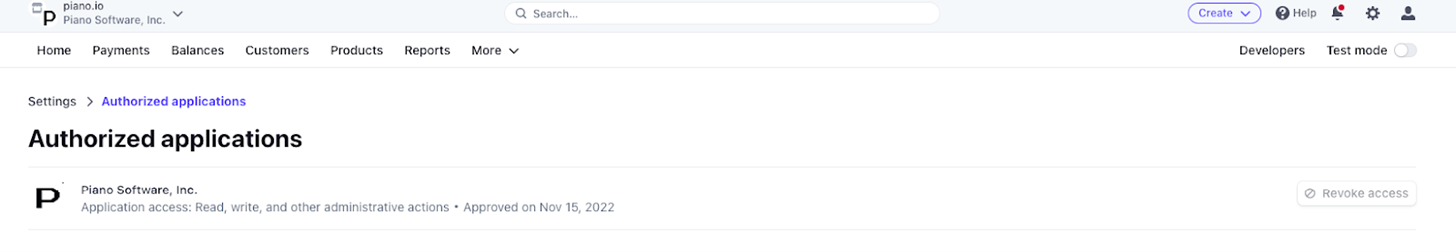

Then click the Connect button to authenticate your Stripe account, this will automatically fetch the required parameters to establish the connection. You do not need to fill out Publishable and Secret keys manually anymore. Complete the fields and click Save.

Please note, that you need to verify your domain within Apple Pay as well. More information about this is available here.

Under this link, you can find more details about Piano's Apple Pay Integration.

Please also review this article: How to enable Frictionless checkout

Template changes

For Stripe Elements, to ensure the latest code is loaded in the Checkout and My Account, system template changes are required. There are a few ways to update your templates;

• The easiest is to reset to default if you haven’t stylized the templates.

• If you did, then you can use the

  Compare code

  feature and compare the code between the default version and your current version, and carry over any new code line by line.

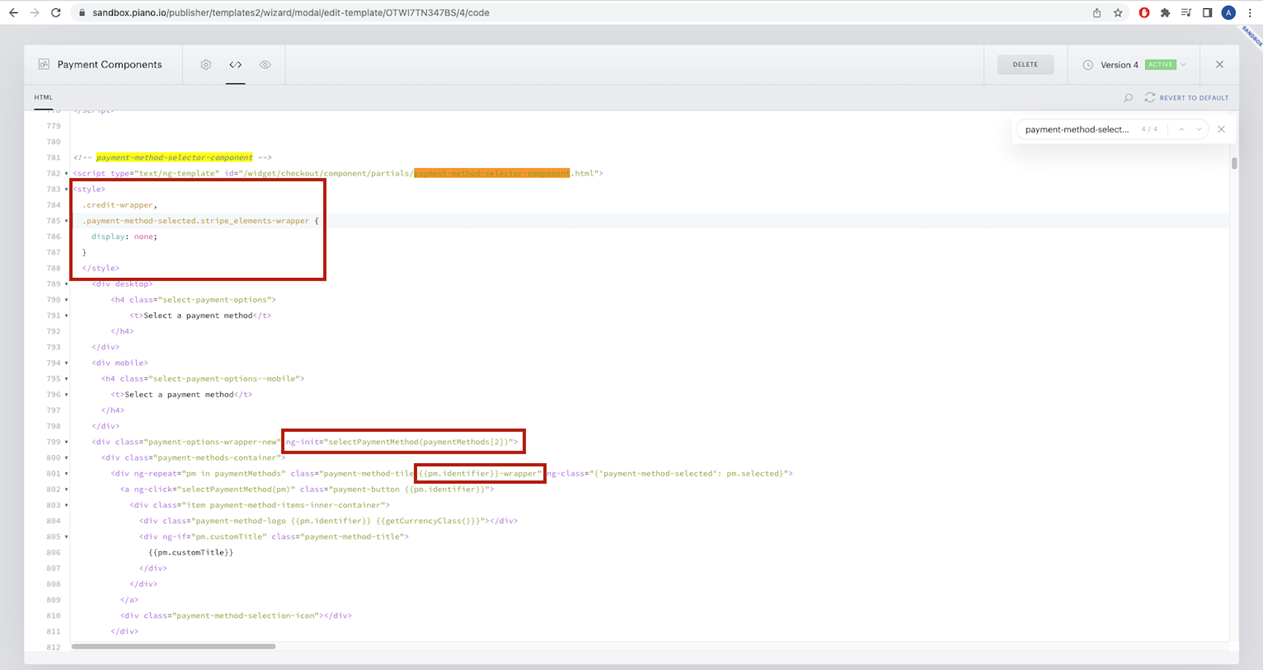

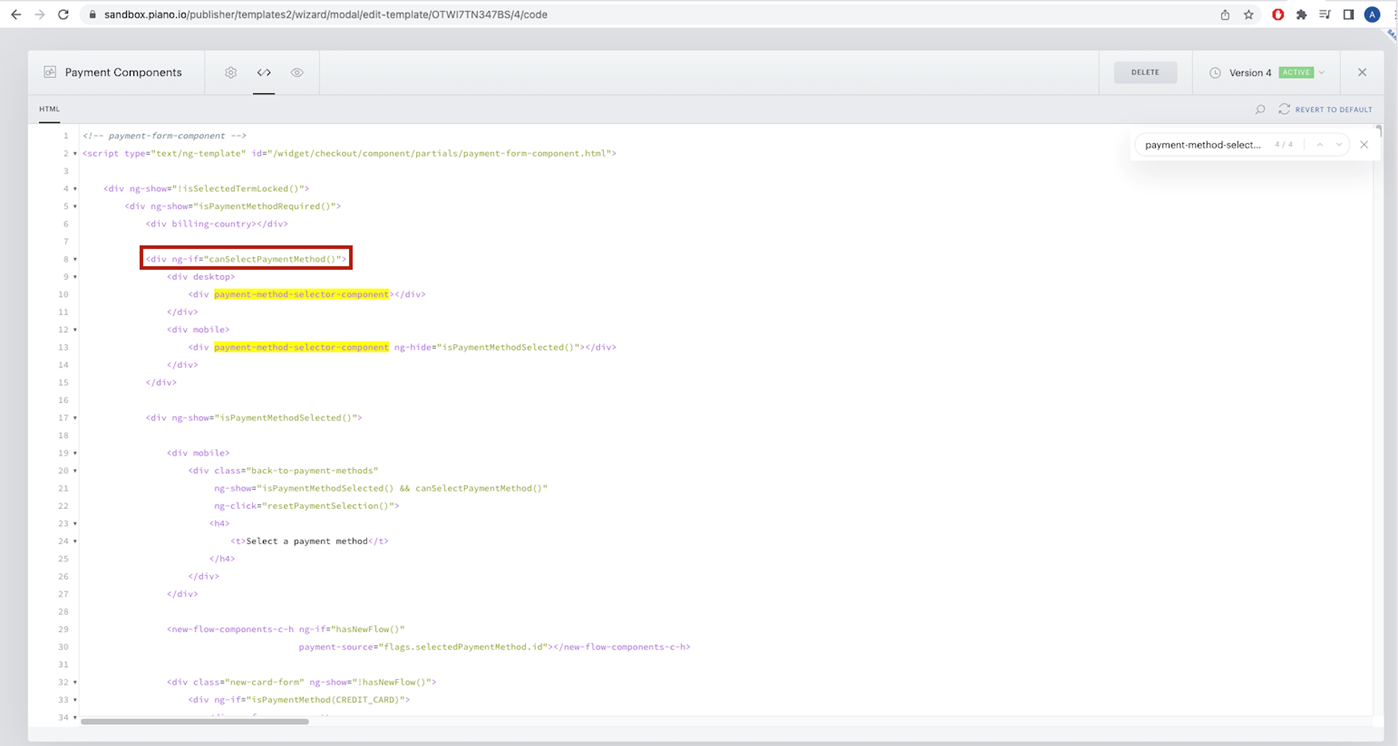

Check that the Payment Components template contains the following components, incl. the relevant code:

<script type="text/ng-template" id="/frontend/providers/components/stripeelements/checkout/component.shtml">

As well as:

<script type="text/ng-template" id="/frontend/providers/components/stripeelements/common/baseTemplate.shtml">

*If your application has been created a long time ago, please check the Checkout template is also using the latest version.

Please check that you are using the latest version of the My Account Wallet Components, you can either reset to default or use the compare versions feature to make updates to your template.

Cardholder name

Before enabling the collection of the Cardholder name for card payments in the configuration, ensure that your system templates are updated accordingly.

There are numerous ways to update your system template to fetch the latest functionality;

1. Reset to default (easiest but depending on your level of customization you may need to decide if feasible)

2. Use the Compare to default feature in the System template editor, and carry new lines of codes over to your version

3. Follow the below instructions to implement the new lines of code in your system template

Template updates for Stripe Credit Cards

Go to Manage → Templates → System → Payment Components and find ]]>

In ]]>

Please note that each of the two selector element IDs should appear only once per template. For instance, if they are included in a base template component, they must be removed from other components within the same template to prevent duplication.

Template updates for Stripe Credit Cards

There are two separate selector div's: for adding a new card

and one for saved cards .

To add go to Manage → Templates → My account → My Account Wallet Components, and insert the selectors for example like this:

In ]]>

In ]]>

Please note that each of the two selector element IDs should appear only once per template. For instance, if they are included in a base template component, they must be removed from other components within the same template to prevent duplication.

Stripe Elements modes vs. Piano instances

Piano Sandbox is now connecting to a standalone Stripe Sandbox account under the Piano US Connect platform account.

For Production, Piano instances US, EU, AU, and AP are connecting to individual Stripe Connect accounts in order to process webhook events properly, therefore for Stripe live mode production processing your Stripe account will be connected to your Piano dashboard instance accordingly.

Please note that the “test mode” or “sandbox mode” of your Stripe account will be connected to Sandbox nested under Piano US Connect account. Since Sandboxes are separate environments, if you cannot see your test payments in your Stripe test mode, this is most likely because your Sandbox is connected to a different account.

Frequently asked questions

Q: When checking out after completing a purchase nothing happens.

A: This may be due to an additional setting ("3DS Full redirect") that needs to be enabled by Piano, if this happens please notify your Piano representative to get this checked by sharing your AID.

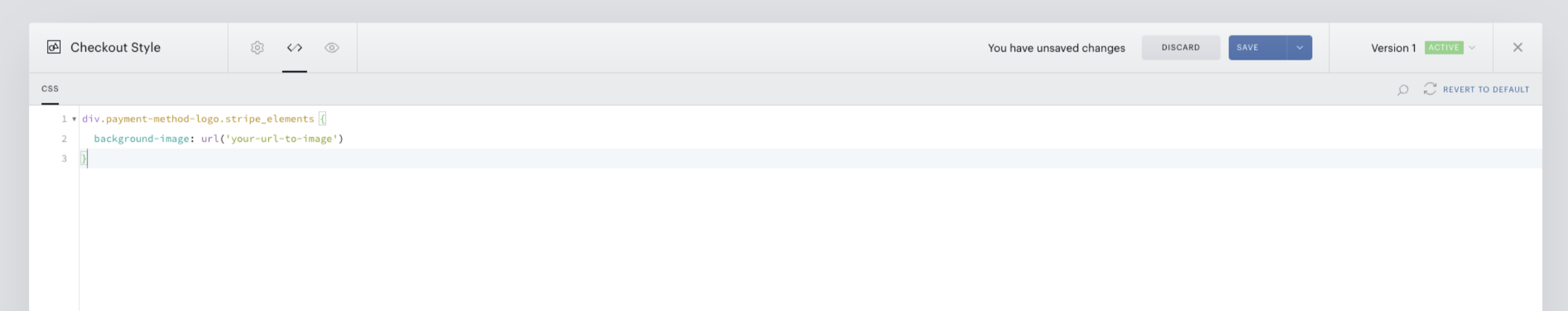

Q: How can I customize the provider buttons in the checkout, if I want to hide some providers from appearing in the “Select a payment method” option?

A: You can use the payment method id and work with the active class to hide different options as described here.

Q: How to pre-select Stripe if you use other providers in addition to Stripe in the checkout?

A: You can use an expression such as

 to pre-select Stripe elements.

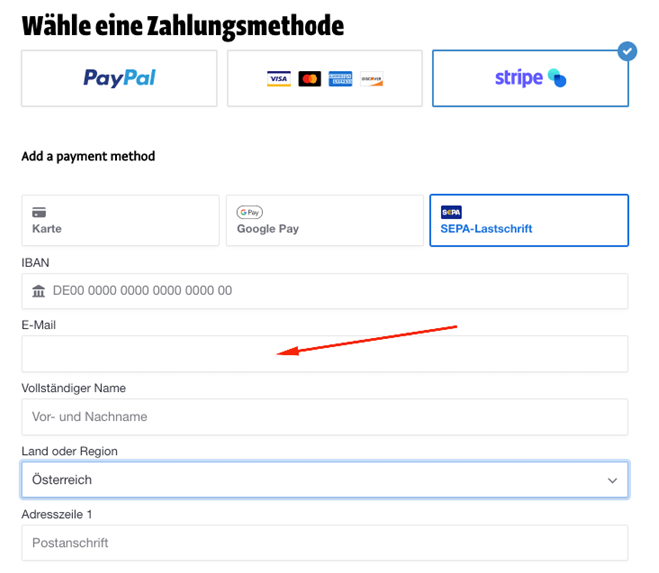

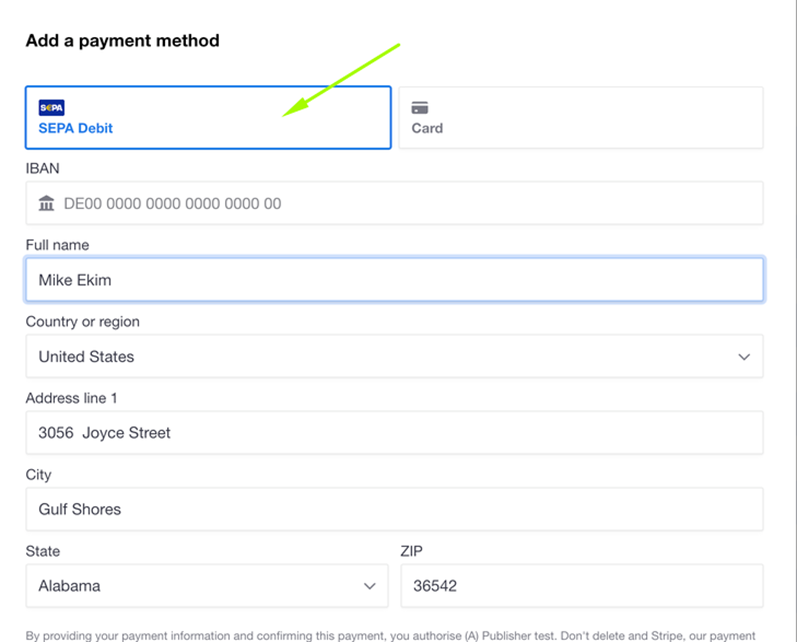

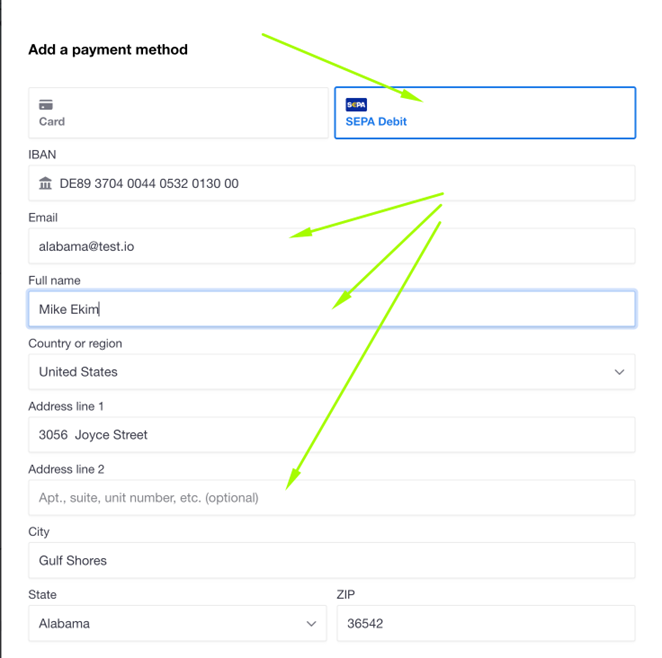

Q: Is it possible to prepopulate the email within the Sepa payment method?

A: Yes, if available, Piano can pre-populate it automatically, and you can decide to hide this field.

You will need to update the Payment Components template and add a special tag like in the following example.

Please note, this is a sample code of the customized template, if you do not want to default to Germany in your checkout fields, make sure to customize the below lines:

<!-- https://stripe.com/docs/js/elements_object/create_payment_element#payment_element_create-options -->
<div id="stripe-elements-create-options" class="stripe-elements-create-options">
  {
    "paymentMethodOrder":["sepa_debit", "card"],
    "defaultValues":{
        "billingDetails":{
            "address":{
                "line2": "empty",
                "country": "DE"
            }
        }
    },
    "fields":{
        "billingDetails":{
            "email": "never",
            "address":{
                "line2": "never"
            }
        }
    }
}
</div>

Before (SEPA is the second option, email and line2 are visible):

After the sample code is added (SEPA is the first option, email and line2 are hidden):

If you hide some field using "never" you should pass the default value for the field. Applies to every field except name and email. For those two fields, values are automatically pre-populated.

Q: Why do I not see any metadata coming through in my Stripe application or why can’t I see the payment methods?

A: This is most likely because you have not given Piano Software Inc. (Connect platform) permissions to manage these on your behalf, please navigate to Applications and enable Piano Software Inc. to handle these actions.

Q: How can I pass custom metadata to the Piano platform?

A:

Q: Why do certain payment methods not appear in the checkout?

A: Please note, that by default your application will only have card payments enabled. Other payment methods need to be enabled in your Stripe account, please navigate to settings, when logged in to your Stripe dashboard and turn on the desired methods, follow any further instructions on how to configure the method.

Q: What happens if I connect my Stripe account to multiple Piano instances?

A: When reviewing the payment methods settings, you will notice an additional dropdown from within which you will need to select the correct platform name.

Q: Are there any country limitations?

A: Apple and Google Pay payment methods are not supported in India by Stripe.

More details about the supported countries are listed here.

Q: How can I customize the element fields in the checkout?

A: For this, make sure your Payment Components template is up to date, then using the stripe-elements-create-options and stripe-elements-appearance class you can customize the display of the fields, the below code is just a sample - make sure to customize it to your country or use case.

The available customization options are described in the Stripe documentation here:

Payment Element options

Appearance API

Examples:

<!-- https://stripe.com/docs/elements/appearance-api -->
<div id="stripe-elements-appearance" class="stripe-elements-appearance">
  {
    "theme": "stripe",
    "variables": {
      "fontFamily": "'Helvetica Neue', Arial, sans-serif",
      "borderRadius": "2px",
      "fontSizeBase": "0.9rem"
    }
  }
</div>

<!-- https://stripe.com/docs/js/elements_object/create_payment_element#payment_element_create-options -->
<div id="stripe-elements-create-options" class="stripe-elements-create-options">
  {
    "paymentMethodOrder":["sepa_debit", "card"],
    "defaultValues":{
        "billingDetails":{
            "address":{
                "line2": "empty",
                "country": "DE"
            }
        }
    },
    "fields":{
        "billingDetails":{
            "email": "never",
            "address":{
                "line2": "never"
            }
        }
    }
}
</div>

This will allow you to customize the order and hide/show fields as desired:

If you hide a field using never you should pass a default value for that field. This applies to all fields except name and email.

The email and first/last name are pre-populated by Piano.

You can hide any address fields (country, line 1, line 2, city, state, zip) but in such case, you have to provide values for the hidden fields. Stripe will throw an error if the field is set to never and the value is empty. It does not depend on the payment type.

Stripe's Address Element

In the payment provider configuration for Stripe Elements accessible from the Piano dashboard's Edit Business section, you can enable Stripe's Address element for address collection during checkout and configure further details.

Please note that the settings from this configuration are applied to checkout only.

The Stripe Address Element allows you to collect full billing or shipping addresses during payment processing in checkout, ensuring comprehensive address data collection across all Stripe payment methods.

For credit card payments that require the cardholder's name for 3DS authentication, the Address element collects the First and Last name during checkout and automatically passes them to Stripe.

All collected billing address properties are available in the downloadable file of the Transaction log report.

Configuration Options:

• Mode: Choose between "Billing" and "Shipping". In "Shipping" mode, the billing address is collected with the Payment Element. Default is "Billing" mode.

• Allowed Countries: Restrict the list of available countries in the dropdown menu of the Country selector.

• Phone Number: Enable or disable the collection of phone numbers in addition to regular fields.

  • Required Phone Number: Make phone number collection (if enabled) mandatory.

• Store Name in User Profile: When enabled, the name collected during the payment process is saved to the user's profile in Piano.

• Split Name Field: Configure the Address Element to split the name field into "First Name" and "Last Name" inputs.

Q: How to manage the element fields when taxes are enabled (using custom logic)?

A: If you collect taxes using one of our tax provider integrations (TaxJar or Avalara), you may choose to automatically hide duplicated country and postal code fields in the Stripe Elements iframe.

To do so, you should enable Custom logic in the Stripe Elements configuration (Edit business → Payment providers → Edit Stripe Elements configuration).

In this case, country and postal code values entered by the user in billing details will be automatically applied to Stripe fields and then corresponding Stripe fields will be hidden.

If you wish to collect certain address fields for SEPA (while you’re using custom logic), you may configure your template in the following example:

{
  "defaultValues": {
    "billingDetails": {
      "address": {
        "line1": "any",
        "line2": "",
        "postal_code": "",
        "state": "",
        "city": "",
        "country": ""
      }
    }
  },
  "fields": {
    "billingDetails": {
      "address": {
        "line1": "never",
        "line2": "never",
        "postalCode": "auto",
        "state": "never",
        "city": "never",
        "country": "auto"
      }
    }
  }
}

The case above allows you to collect country and postal code values without duplications.

Pay attention, that you need to define line1 with a default value (at least 3 characters) in order to pass Stripe validation to collect the postal code value.

Also, you may use template configurations described in the SEPA and Bacs payment method sections below.

Managing the fields when custom logic is disabled

Card payment method

The following template configuration is applicable if you do not want to collect country and postal code values and you do not use the Custom logic described above.

{
  "defaultValues": {
    "billingDetails": {
      "address": {
        "postal_code": "",
        "country": "GB"
      }
    }
  },
  "fields": {
    "billingDetails": {
      "address": {
        "postalCode": "never",
        "country": "never"
      }
    }
  }
}

Pay attention that you need to define a default country value in order to pass Stripe’s validation. In this case, every customer will have a Great Britain address in the Stripe dashboard.

The case below if you want to collect postal code only:

{
  "defaultValues": {
    "billingDetails": {
      "address": {
        "postal_code": "",
        "country": "GB"
      }
    }
  },
  "fields": {
    "billingDetails": {
      "address": {
        "postalCode": "auto",
        "country": "never"
      }
    }
  }
}

As you can see we still need to define default country value in order to pass Stripe’s validation.

The case below if you want to collect country value only:

{
  "defaultValues": {
    "billingDetails": {
      "address": {
        "postal_code": "",
        "country": ""
      }
    }
  },
  "fields": {
    "billingDetails": {
      "address": {
        "postalCode": "never",
        "country": "auto"
      }
    }
  }
}

In this case, you may not define default values.

SEPA payment method

In case you do not want to collect any addresses from your SEPA customers you should use this code:

{
  "defaultValues": {
    "billingDetails": {
      "address": {
        "line1": "",
        "line2": "",
        "postal_code": "",
        "state": "",
        "city": "",
        "country": "GB"
      }
    }
  },
  "fields": {
    "billingDetails": {
      "address": {
        "line1": "never",
        "line2": "never",
        "postalCode": "never",
        "state": "never",
        "city": "never",
        "country": "never"
      }
    }
  }
}

Pay attention that you need to define a default country value in order to pass Stripe’s validation. In this case, every customer will have a Great Britain address in the Stripe dashboard.

Alternatively, you can fill every default address field with any value, so every customer will have a constant address.

In case you want to collect certain address fields the code will be as follows: (example below: collect postal code, city and country)

{
  "defaultValues": {
    "billingDetails": {
      "address": {
        "line1": "any",
        "line2": "",
        "postal_code": "",
        "state": "",
        "city": "",
        "country": ""
      }
    }
  },
  "fields": {
    "billingDetails": {
      "address": {
        "line1": "never",
        "line2": "never",
        "postalCode": "auto",
        "state": "never",
        "city": "auto",
        "country": "auto"
      }
    }
  }
}

Please pay attention that you’ll have to define a default value for line1 (at least 3 characters) in order to pass Stripe’s internal validation, otherwise you won’t see other address fields.

Bacs payment method

Bacs payment method requires us to complete all address fields, so in this case, if you want to hide all fields you need to define all address fields with the default values:

{
  "defaultValues": {
    "billingDetails": {
      "address": {
        "line1": "any",
        "line2": "any",
        "postal_code": "any",
        "state": "any",
        "city": "any",
        "country": "GB"
      }
    }
  },
  "fields": {
    "billingDetails": {
      "address": {
        "line1": "never",
        "line2": "never",
        "postalCode": "never",
        "state": "never",
        "city": "never",
        "country": "never"
      }
    }
  }
}

Please pay attention that you have to define a real country code.

In case you want to collect certain address fields the code will be as follows: (example below: collect postal code, city and country)

{
  "defaultValues": {
    "billingDetails": {
      "address": {
        "line1": "any",
        "line2": "any",
        "postal_code": "",
        "state": "any",
        "city": "",
        "country": ""
      }
    }
  },
  "fields": {
    "billingDetails": {
      "address": {
        "line1": "never",
        "line2": "never",
        "postalCode": "auto",
        "state": "never",
        "city": "auto",
        "country": "auto"
      }
    }
  }
}

Q: How do I use the new Stripe integration if I already use the earlier version?

A: After completing your testing successfully, you can hide the Stripe Credit Cards version in your checkout from within the Edit Business → Payment Provider configuration settings, and start using the Stripe Elements integration for any new subscribers immediately.

Q: Can I modify the provider logos in the checkout if I use multiple Stripe integrations and/or other providers?

A: Yes, you can modify the system templates as desired. Please note, Stripe Elements houses multiple payment methods within the same iframe, therefore by default the Stripe Elements integration will show as follows:

If you would like to further customize the provider button and present specific methods you can do so easily by adding your own logo and replacing the default Stripe logo in the "Select a Payment Method" section by going to Manage  → System Templates → Checkout Style and updating the following code:

Q: How do I modify the pending state message in My Account?

A: If you wish to change the message you can do so under Manage → Templates → My Account Help Components and My Account Library Components by updating the following tag copy:

Q: Why do I see Uncaptured payments in my Stripe dashboard?

A: Starting Aug 29th, you will no longer see Refunded payments (Reversals) on free period (trial/promo) transactions in the Stripe dashboard, as a two-step authorization and capture card processing was implemented. Although rare, due to headless transaction processing, you may notice some transactions hang in an "uncaptured state" for a short period of time. Piano features a reconciliation job that runs validation on a regular basis and makes necessary updates at which point transactions that should be captured will be automatically completed, and uncaptured payments which are the result of a duplicate headless payment made by the user will be automatically cancelled. The reconciliation job runs every hour and reviews and updates transactions within a 6-hour window.

Q: How to map Piano users to Stripe customers?

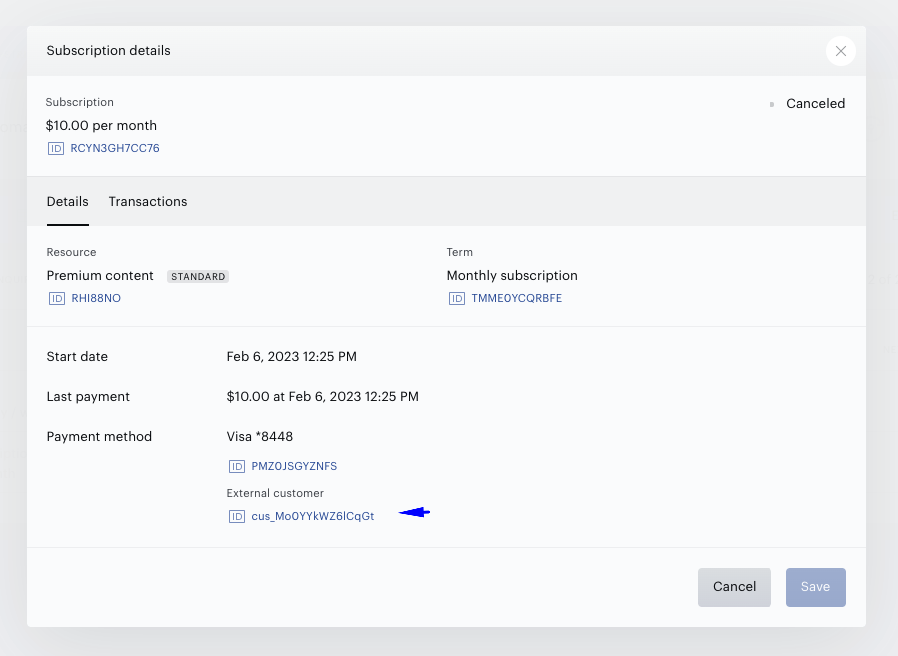

A: You can use an email address to find the customer in Stripe or you can find the Stripe Customer ID under the External Customer section in the Subscription Details or Transaction Details located in the User Overview in the Piano dashboard:

Additionally, you can infer this connection through the Transaction log report, where the User ID field (UID) is the unique identifier of the user associated with a particular transaction, and the External Tx ID field is the unique Stripe paymentIntent ID. By matching transactions, you can infer which UID is associated with which Stripe customer ID. Piano provides an External Transaction ID in the Transaction log report which is the paymentIntent ID in Stripe. For more information check the External Transaction and Subscription Mapping between Stripe and Piano.

Q: How and how often is payment method adding or updating communicated to Stripe?

A: When a card is added to the Piano wallet, the corresponding payment method gets automatically added to a Stripe customer. This is facilitated by the tokenization of the card information, which is then stored as a payment token in Piano. This token, provided by Stripe, does not contain any sensitive data but allows Stripe to identify what payment method data they need to use to process the transaction. This is instant.

Q: How and how often is a payment method removal from the Piano wallet, communicated to Stripe?

A: When a payment method is removed from the Piano wallet, the associated payment method also gets removed from Stripe. This is because Piano only stores a payment token representing the payment method, not the actual card details. When the token is removed from Piano, the corresponding payment method in Stripe is also deleted. This is also done immediately using the detach API.

Q: When a card is directly updated on a Stripe account, does the card in the Piano Wallet also get updated?

A: When a payment method is directly updated on a Stripe account, the card information in Piano also gets updated. In the same way, if a user’s payment method information gets updated, it also updates in Stripe. This is managed by webhook handling of the payment_method.automatically_updated event.

If a card is removed in Stripe directly, it is not automatically removed from the Piano wallet. Therefore, it is recommended to delete payment methods in Piano rather than directly in the Stripe dashboard.

Q: How can I edit the Stripe Elements naming in the platform if I want to communicate specific methods available in the element?

A: Under Edit Business → Payment Provider → Stripe Elements, you can change the Payment method name field.

This will update the name of the provider (and replace the Multiple Options placeholder) in the My Account section's "Add payment method" dropdown as well as in the Dashboard's interface. The maximum length limit is 30 characters.

Q: Are CIT / MIT indicators supported in the transaction processing?

A: More details about this are available in Stripe's documentation.

Q: Can purchases be made using a single-use card?

A: No, purchases cannot be completed with single-use cards as they are automatically blocked. However, you can generate a standard virtual card, make your purchase, and then deactivate the card. This transaction will be accepted by the system.

Q: How do ACH payments work with Piano (asynchronous flow)?

A: Unlike card payments, which are authorised and settled synchronously, ACH Direct Debit payments are asynchronous. When a user completes an ACH checkout, Piano does not wait for bank confirmation before granting access. The sequence is as follows:

1. The user submits their bank account details at checkout.

2. Piano immediately creates the subscription and grants access, recording the transaction in a Pending status.

3. Stripe initiates the ACH debit with the user's bank. This process typically takes 3–5 business days.

4. Stripe sends a webhook notification to Piano when the debit either succeeds or fails.

5. Piano updates the transaction status accordingly:

   • Payment succeeds → transaction moves to Completed; access and subscription remain active.

   • Payment fails → access is revoked and the subscription is cancelled.

Piano automatically registers the required webhook endpoint with Stripe when you configure Stripe Elements as your payment provider. You do not need to manually create or configure webhooks in your Stripe Dashboard for the core payment flow, including ACH, to work correctly.

Last updated: July 02, 2026
